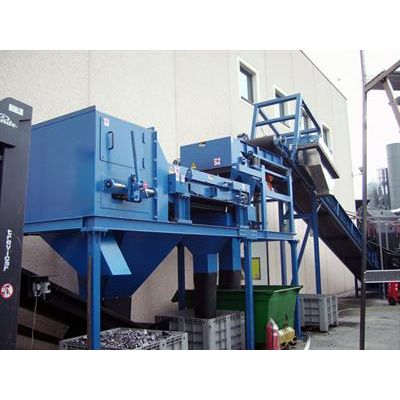

Eddy - Model ECS -Current Magnetic Separator System

• The principle of operation is based on the action of eddy currents generated in the non-ferrous metals, by a high-frequency alternating magnetic field. The metal is separated from inert by repulsion. The belt carries the process material over the inner magnetic rotor, where the nonferrous is launched forward, while the inert falls freely.
• The quality of separation, offered by these machines, is directly proportional to the ratio between the electric conductivity and the specific weight of the material to be separated.
• Gauss Magnets, thanks to its deep experience in this matter and to its attention to customer requests, has improved, over time, the design of these separators and now offers various working widths (5002.500mm), to meet the different separation requirements.

The performance may be bound by the use conditions and by the nature of the material (size homogeneity, humidity, temperature, etc.); in the best conditions, it is possible to obtain:

• Separation of ferromagnetic intrusions 99.9%, thanks to the concentric magnetic rotor;
• Separation of non-ferrous metals from 93% to 99%;
• non-ferrous separated metals purity by 80% to 95%.

Some parameters

• BELT SPEED: 1,5 ÷3,5 m/s
• ROTOR SPEED: ≤ 4000 RPM
• FREQUENCY: ≤ 1000 Hz
• MATERIAL SIZE: 2 ÷ 350 mm, uniform and consistent
