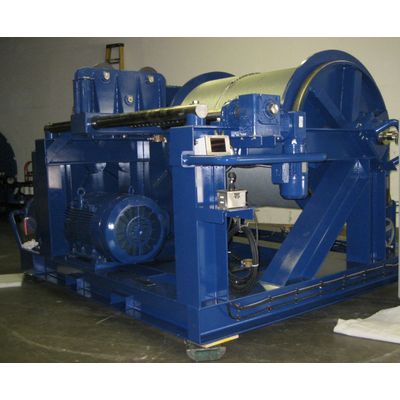

InterOcean - Model Series 75030 -Custom-Built Oceanographic Winch

Custom-built Oceanographic winch with 200HP IP65 induction motor with independent level wind drive capable of pulling 27,500 line tension (12,500kg) at 147 ft/min (45m/min). Closed-loop motor control with dynamic braking provides ultra-slow payload control down to a few feet per minute. The drum holds 24,600 ft (7,500 m) of 0.680 in. (17.2mm) electromechanical, double-armor cable. Level wind incorporates load and magnet sensors for direct line tension and scope read-outs on a daylight-bright display. Hand-held pendant control allows adjustment of the level wind carriage position.
