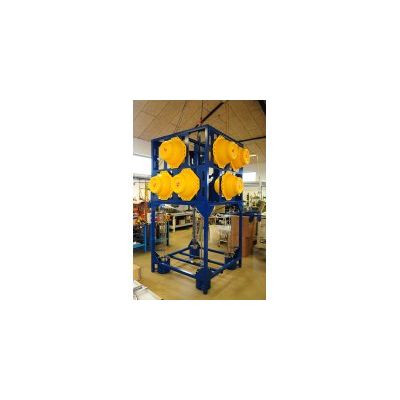

KC - Custom Made Deep Sea Lander

Safety Bolt

• for antenna 2 pcs /each
• Flash holder, complete, manufactured from green polyethylene (PE - HD).
• ST400A XENON FLASHER for 6000 m depth
• VHF Radio Beacon, transmitter
• Beacon receiver

Beacon Holder

• complete, manufactured from green polyethylene (PE-HD) and AISI stainless steel 316.

Floatation Rack

• made of aluminium tube 50 x 50 x 4 mm, prepared for 2 pcs acoustic release transponder system and without glass spheres.

Catch Ring

• Ø50 cm diameter, manufactured from AISI 316 stainless steel, mounted on the floatation rack.
• 17" glass spheres (floatation) with yellow hard hats PE-HD. Buoyancy app. 25 kg

Lower Frame

• manufactured from aluminium
• tube 50 x50 x 4 mm with 4 adjustable legs and prepared for burn wire release system.

Burn Wire Release System

• manufactured from laser cut AISI 316 stainless steel and holder for acoustic release transponder.

Ballast System

• 3 pcs, manufactured from aluminium, I.D. Ø26 cm.
• 4 Pcs bracket and 4 pcs acrylic tube for protect ballast chain
• 4 Pcs adjustable holder for acoustic release transponder made of stainless steel 316 and Polypropylene Plastic.
