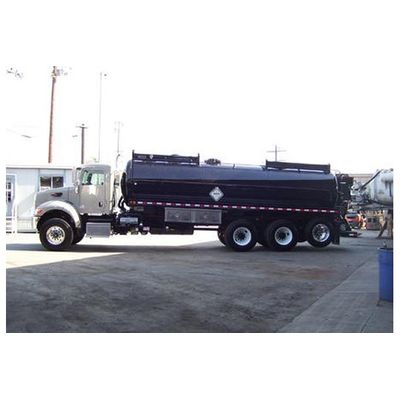

Thompson Tank - Model ST-4000-64000 -Custom Vacuum Trucks
Model Features; 4000 gallons, 64k gross, ASME code, DOT 407-412, dual standard catwalks, 316 ss clad tank bottom, PTO driven TTI-VC-454 vacuum pump, PTO driven 3" Roper gear pump.
Most popular related searches
PTO pump
vacuum truck
liquid-level indicator
liquid level monitoring
level indicator
vacuum tank
hydraulic actuator
ultrasonic level
air scrubber
gear pump
- 90-100 bbl., 64,000 lbs gross design (custom capacities & weight ratings available)
- Dot 407/412 certification for flammable, combustible, and corrosive products per 178.345-15 (nonspec cargo tanks also available)
- ASME code certified 50 psi internal and full vacuum, including nb registration (non-code cargo tank also available)
- minimum of 8” slope from front to rear for complete drainage and elimination of excess bottom corrosion
- full 1/16” corrosion allowance resulting in lower minimum thickness & long life spans
- PTO driven pump packages & hydraulic pump packages are available
- two (2) 20” washout assemblies, per compartment and one (1) 20” dome assembly are standard for thorough tank cleaning
- thompson patented air system, including primary cantilever shut-off & secondary vertical shutoff valves, optional air scrubber & bleeder assembly (vacuum or pressure manual regulator) with rear end controls
- thompson mechanical liquid level indicator (digital float & ultrasonic level indicators are available
- 4” inlet & 6” discharge made from rolled extra heavy pipe providing a longer radius, which greatly lessens abrasion ware & whirlpooling
- clearflow valve assemblies (other options are available) w/ self closing hydraulic actuators
- catwalks are available in unenclosed 12” wide aluminum grip strut with osha compliant handrailing assemblies
- two (2) 36” x 24” x 24” aluminum tool boxes – double weather proof doors
- all lighting is l.e.d. (light emitting diode) type, including two (2) 1,500 lumen led work lights at rear, all in an enclosed wire harness system
