Schleuniger EcoStrip - Model 9480 -Cut and Strip Wire Processing Machine

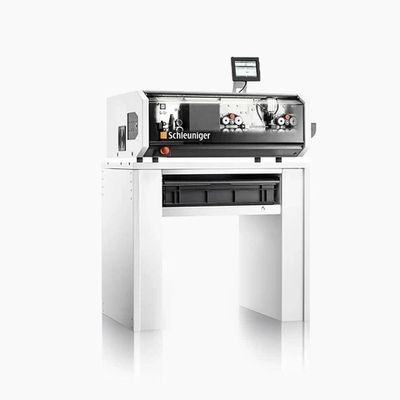

The MultiStrip 9480 family offers six machine versions with additional options and accessories for wires from 0.5 – 12.5 mm (0.0196 – 0.49") or up to 6.5 mm (0.26") in diameter. The MultiStrip 9480 family offers six machine versions to cover a wide range of applications and budgets.The fully programmable rotary incision unit comes in MR, RS, RSX, and RX versions. The RSX and RX incision units cut wire up to 6.5 mm (0.26"). They allow easy processing of high-precision coaxial and multilayer applications. Additional features, such as a multiposition cutting unit, create a nearly endless range of application possibilities. Each machine can be easily interfaced with Schleuniger’s vast line of integrated accessories to create a fully automatic wire processing production line.Each of the six machine versions features powerful control software. Fast and easy setups and changeovers save time in production.
Modular Design for a Wide Range of Accessories and Custom Devices

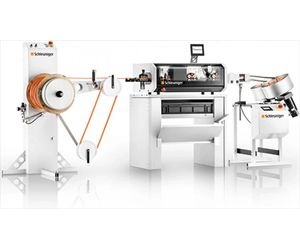

The MultiStrip 9480 is available in six versions to meet your budget and production needs. It's compatible with prefeeders, marking systems, coilers, stackers, and custom devices.

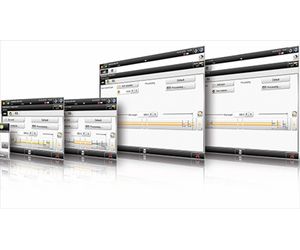

The color touchscreen with user-friendly navigation within the S.On Software allows for quick program setup, ensuring efficient processing of wire lists.

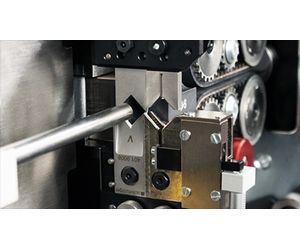

The cutting unit with Schleuniger RX technology processes different cables with high precision. Each of the six machine versions comes with a specific cutting unit

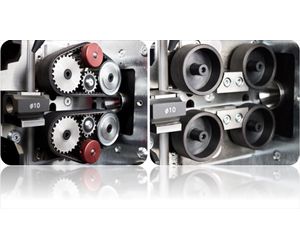

Choose a suitable drive for optimal traction and transport precision: either a belt drive with a support pulley or a double roller drive – both with an optional short mode kit.
MultiStrip 9480
Metric
- Interfaces: Standard: 2 x USB, 2 x Ethernet, prefeed, hotstamp and postfeed interfaces 5 additional SMI’s (Schleuniger Machine Interface) for up to 2 marking systems, different peripheral devices, and emergency stop circuits.
- Wire length/standard mode: 62.5 mm (2.46”) - 1’000'000 mm (39.370”)
- Wire outer diameter range: 0.032 - 0.49 in
- Wire outer diameter min.: 0.5 mm
- Conductor cross section: S/M/MR/RS: 0.25 mm² - 20 mm² (24 - 4 AWG), RSX/RX: Max. 6 mm² (10 AWG), single conductor
- Conductor cross section, with optional cutter booster: S/M/MR/RS: Max. 25.0 mm² (4 AWG), depending on cable type, RSX/RX: Max. 6 mm² (10 AWG), single conductor
- Wire cross section: 0.25 - 25 mm²
- Wire length max.: 1000000 mm
- Strip length min.: 0.1 mm
- Strip length max.: 1000000 mm
- Strip length, full stripping on left side max.: 95 mm
- Strip length, full stripping on right side max.: 195 mm
- Wire outer diameter max.: 12.5 mm
- Automatic conductor detector: SmartDetect
- Wire cross section min.: 0.25 mm²
- Wire cross section max.: 25 mm²
- Sequence processing (number of wires): yes
- Length accuracy: Repetition accuracy: ± (0.2% + 1.0)
- Drive system: Belt or Roller
- Noise level: <70 dB
- Electrical connection: 100VAC to 240VAC, 50/60Hz
- Compressed-air connection: 6 bar
- Air consumption: 10 l/min
- Air consumption (guideline with output of x,000 articles/h): 10
- Network connection: Yes
- Recommended operating pressure: 6 bar
- Weight: 95 kg
- Dimensions/length: 934 mm
- Dimensions/width: 698 mm
- Dimensions/height: 333 mm
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
Imperial
- Interfaces: Standard: 2 x USB, 2 x Ethernet, prefeed, hotstamp and postfeed interfaces 5 additional SMI’s (Schleuniger Machine Interface) for up to 2 marking systems, different peripheral devices, and emergency stop circuits.
- Wire outer diameter range: 0.032 - 0.49 in
- Wire outer diameter min.: 0.0196 in
- Conductor cross section: S/M/MR/RS: 0.25 mm² - 20 mm² (24 - 4 AWG), RSX/RX: Max. 6 mm² (10 AWG), single conductor
- Conductor cross section, with optional cutter booster: S/M/MR/RS: Max. 25.0 mm² (4 AWG), depending on cable type, RSX/RX: Max. 6 mm² (10 AWG), single conductor
- Wire cross section: AWG24 - AWG6
- Wire length max.: 39370 in
- Strip length min.: 0.003937 in
- Strip length max.: 39370 in
- Strip length, full stripping on left side max.: 3.74 in
- Strip length, full stripping on right side max.: 7.68 in
- Wire outer diameter max.: 0.49 in
- Automatic conductor detector: SmartDetect
- Wire cross section min.: AWG24
- Wire cross section max.: AWG4
- Sequence processing (number of wires): yes
- Drive system: Belt or Roller
- Noise level: <70 dB
- Electrical connection: 100VAC to 240VAC, 50/60Hz
- Compressed-air connection: 87 psi
- Air consumption (guideline with output of x,000 articles/h): 10
- Network connection: Yes
- Recommended operating pressure: 87 psi
- Weight: 209 lb
- Dimensions/length: 36.8 in
- Dimensions/width: 27.5 in
- Dimensions/height: 13.1 in
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
