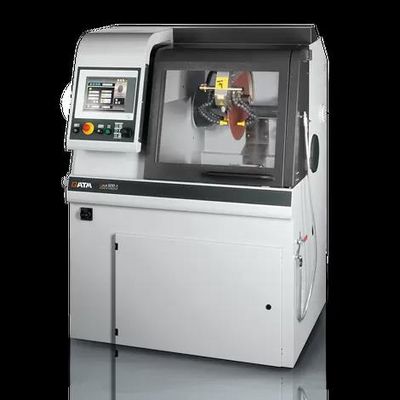

QATM - Model Qcut 500 A -Cut-off Machine
The universal wet cutt-off machine Qcut 500 A meets the highest of demands on space available and possibilities for cutting with its innovative concept for design, construction, and operation. The automatic horizontal table (X-axis) and cutting wheel movement (Y-axis) can reach up to 80 mm/ sec. through highly dynamic axis drives in rapid run.Most popular related searches
- Automatic horizontal movement (X-axis)
- Vertical movement (Y-axis)
- Automatic cross feed of cutting wheel (Z-axis)
- High dynamic drive up to 80 mm/sec.
- Multi-position process MPP
- Cutting force control
- Variable pulse-cut feed
- Variable speed

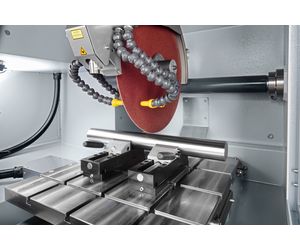

- Incl. cutting wheel arbour with wear ring
- Cutting chamber illumination with LED flex light
- Manual control of all axis by joystick
- Touch-screen display with QATM software control
- Optical manu navigation for drawing up precise program sequences with position steps and cutting modes
- Storage of unlimited number of programs with password; ipdate and backup via USB
- Remote service/support is available via controller (ISDN connection with router on site required)
- Sliding door with large window made of scratchproof safety glass
- Solid aluminium case contruction, powder coasted
- Slide opening left and right for continuous parts
- Large range of different clamping tools and systems available
