QATM - Model Qcut 250 A -Cut-off Machines

SHARE

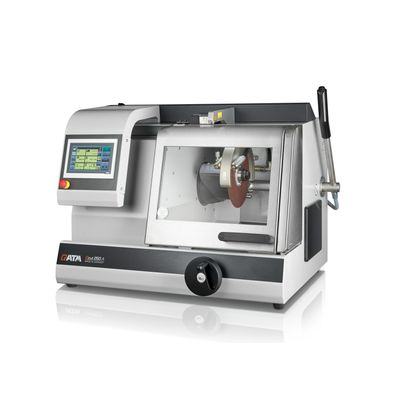

The Qcut 250 A is a compact and flexible semi-automatic abrasive cut-off machine with a 254 mm /10" cut-off wheel for workpieces or samples up to Ø 95 mm. This machine combines the benefits and speed of a manual cut-off machine with the advantages of an automatic abrasive cutter. the semi-automatic Qcut 240 A, equipped with a hand level and automatic lever brake, can be operated with one hand and makes vertical cuts or the positioning of the cut-off wheel easier than before. The cutting table with T-slots is made of stainless steel and can be used either with a dynamic automatic drive (allows pulsed cut) or in a manual mode, operated by a hand wheel (traverse cut). Together with the well-proven QATM technology of pulsed cutting, the Qcut 250 A provides excellent cutting results even with the most difficult materials. And having an automatic X-axis allows the Care-Cut (oscillation cut) during a chop cut for large pieces.
Most popular related searches
automatic cutting machine
  • Manual Y-axis with electromechanical lever brakes
  • Care-Cut: facilitates gentle cutting
  • 7" Touch-Screen user interface with intuitive QATM user software
  • Automatic travel X-axis - manual travel via hand wheel
  • Cutting-force dependent feed control (X-axis)
  • Superior LED illumination of cutting-chamber
  • Parallel setting of wheel guard during cutting sequences increases cutting capacity
  • Opening on both sides for long parts
