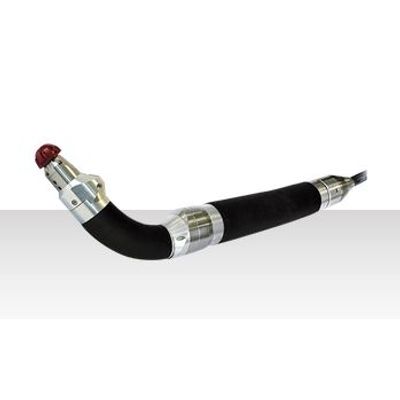

Micro Light - Cutting Robot
Large range of application in pipes from DN 80 up to DN 150/3“ up to 6“ (inside diameter) without conversion work, optional extendable until DN 250/10“.
Most popular related searches
pipe clamp
automatic monitoring
air cleaning
clean air
forced air
waterproofing
nitrogen monitoring
pressure pipe
- excellent flexibility in bends up to 90° in DN 100/4“ through rotating and swivel head
- pneumatic clamping unit permits use also in vertical pipes
- clamping unit separately controlable by cable remote control
- only very small access openings required
- convenient supply hose package of 30 m/98,40 ft
- extremely high cutting force through powerful air motor
- flexible operation through cable remote control
- very precise control of the cutter through joystick
- permanent monitoring of cutting operation due to integrated color camera in the cutting arm with air cleaning
- great mobility convenience through compact chassis
- damage prevention through automatic monitoring of internal pressure with signalling
- deep pipe insertion by fiberglass push rod possible
- variable cutting tools can be installed
- minimum downtimes in case of repair through operator-replaceable components or use of express service (see detailed description in the offer/order conditions)
- upgradeable to MICRO automatic at any time
- useable from DN 80 up to DN 150/3“ up to 6“ (inside diameter), up to DN 250/10“ with optional extensions
- flexibility in bends 90° from DN 100/4“ (clay, no folds, or similar)
- 30 m/98,40 ft supply hose on dru
- coupling elements for fiberglass push rod
- 400° rotating and approx. 90° swivel movement with stops
- air-powered cutter motor
- color camera with LED
- camera cleaning with permanent air
- splashproof according to IP 54
- waterproof device with 0.8 bar nitrogen filling
- permanent monitoring of internal pressure with signalling
- cable remote control with joystick for rotation (sensitivity adjustable) and swivelling, controller for light, switch for cutting motor and bracing bladder control, 1 analogue BNC video output
- 3,5“ TFT LCD monitor, storage picture/video (JPEG/MPEG) with SD card, USB, date and time display on demand
- outside diameter of cutter: 72 mm
- overall dimensions: L 660 x W 550 x H 800 mm (L 26“ x W 22“ x H 31“)
- weight: approx. 47 kg
- compact cutter assembly on chassis with pneumatic rotary leadthrough
- detachable individual components
- box with job site tools, valve extension, set of replacement screws, 1 cutting tool carbidegranulate, nitrogen filling adapter, thread extension, ball bearings and fins for air motor, manual and spare parts overview
