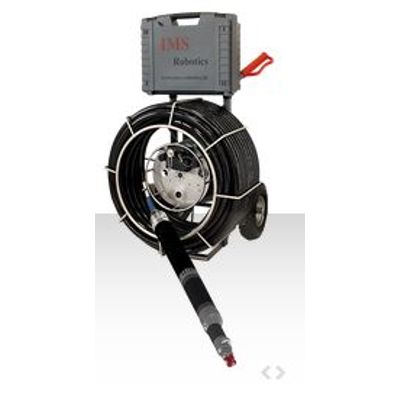

Micro Light Plus - Cutting Robot

Large range of application in pipes from DN 80-150/3’’-6’’ (inside diameter) without conversion, work, optionally extendable up to DN 250/10’’.

Most popular related searches

excellent flexibility in bends up to 90° in DN 100/4’’
through rotating and swivelling of the cutter head
high work efficiency due to axial feed of approx. 50 mm/2’’
pneumatic clamping unit allows use also in vertical pipes
only very small access openings required
extremely high cutting force through powerful air motor
flexible operation by cable remote control and and removable monitor
very precise control of the cutter through joystick
permanent monitoring of cutting operation due to integrated colour camera with air cleaning
damage prevention through automatic internal pressure monitoring with signalling

usable from DN 80-150/3’’-6’’ (inside diameter), up to DN 250/10’’ with optional extension
flexibility in bends 90° from DN 100/4’’
(stoneware, no folds or similar)
axial feed approx. 50 mm/2’’
30 m/98 ft supply hose on cable reel
coupling elements for fi breglass push rod
400° turning movement and approx. 90° swivelling movement with stops
air-poweredcutter motor
colour camera with LED
permanent camera cleaning with air
permanent internal pressure monitoring with signal indicator
cable remote control with joystick for turning movement (sensitivity adjustable) and swivelling
3.5’’ TFT LCD monitor, storage of pictures/videos (JPEG/MPEG) with SD card, USB, date and time display
cutter outside diameter: 72 mm/2.8’’
overall dimension: approx. L 660 x W 550 x H800 mm/approx. L 26’’ x W 22’’ x H 31’’
weight: approx. 47 kg
completely assembled cutter on chassis
detachable individual components
accessory case with construction site tools, valve extension, replacement screws, carbide granulate cutting tool, operating manual and accessory overview
