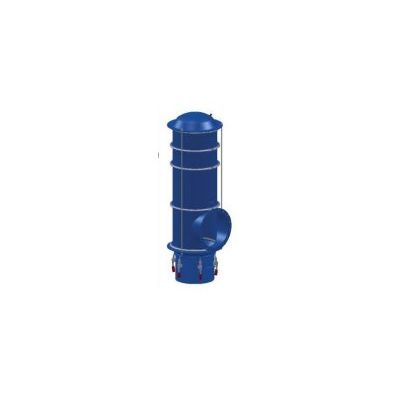

Dustcontrol - Model S 11000 -Cyclone Dust Filter Unit
FromDustcontrol AB
The S 11000 filter unit is of modular construction and is therefore flexible in application. The inlet module can for example be both rotated and reversed. Additional module rings can be installed to increase the storage capacity of the cyclone. The S 11000 is either floor or wall mounted. The S 11000 and S 11000X must always be equipped with a discharge cone or other discharge arrangement.
Most popular related searches
cyclone dust filter
filter cleaning
compressed air
dust filter
cyclone filter unit
cyclone filter
dust cyclone
The X model is equipped with larger filter area and an extra module ring.
- 5024 Wall bracket compl.
- 7179 Stand compl.
- 4706 Discharge Cone
- 4714 Collection sack 50 pack
- 42111 Collection sack 50 pack, antistatic
- Inlet mm : Ø 108
- Outlet mm : Ø 108
- Max Q : 1000 m3/h*)
- Part No. and pcs : 4292 x 1
- Total Filter Area : 8.4 m2
- Degree of separation DIN 24184/3 : > 99.9 %
- Application Class according to Bia : C
- Max temp filter : 130 oC
- Filter cleaning with Reverse Pulse
- Compressed air : 4 l/s, 4 bar
- Connection, hose : 6/8 mm
- El connection : 24V AC alt. DC,12 W
