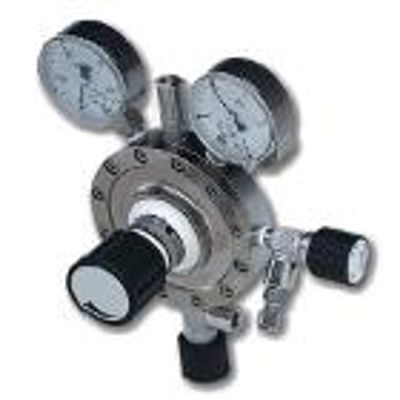

Spectron - Model FE121 -Cylinder Pressure Regulator
Single-stage cylinder pressure regulator. Simple and safe gas withdrawal from gas cylinders, for corrosive gases and gas mixtures up to quality 6.0 up to 25 bar vapour pressure.
Most popular related searches
pressure regulator
gas mixture
relief valve
corrosive gas
gas cylinder storage
diaphragm valve
laboratory ergonomics
gaskets
valve gaskets
gas standard
- For corrosive gases and gas mixtures with >1% corrosive components we recommend the use of a purging device (FE 121 SP)
- New laboratory-style design
- Ergonomically designed
- Filter at the regulator inlet
- High control accuracy due to large diaphragm
- Integrated relief valve
- Available with purge device FE 121 SP
- Simple outlet pressure limitation by handwheel
- Powder-coated bonnet
- Inlet pressure P1: max. 25 bar
- Outlet pressure P2: max. 0,1 - 1,5 bar
- Flow rate Q: max. 9 m³/h
- Materials: Body: stainless steel 316L
- Diaphragm: Hastelloy C276
- Valve seat: PCTFE
- Inlet gasket: PCTFE
- Cylinder connector acc. to international standards and gas type
- Outlet connector: 1/4”-18 NPT female
- Relief valve connector: 1/8”-27 NPT female
- Leak rate: 1 x 10?8 mbar l/s He
- Weight: 2,1 kg
