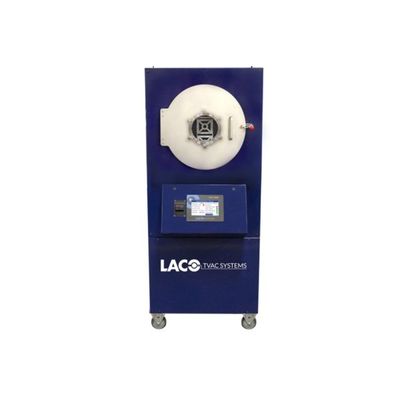

LACO - Cylindrical Bake-Out (TVAC) System
Perform pre-launch test requirements in-house and on schedule with LACO’s Standard Bake-Out (TVAC) Systems. Designed and built by the industry leaders in space simulation testing, our Cylindrical TVAC system meets NASA GSFC-STD-7000 standards for vacuum bake-out, temperature margins, outgassing, and data collection for pre-launch qualifications.
Most popular related searches
manual control valve
digital temperature controller
control valve
vacuum sensor controller
test chamber
pump system
temperature monitoring
manual valve
setpoint temperature controller
pressure control valve
- Achieve successful compliance of pre-launch bake-out requirements and specifications
- Outgas contaminants and impurities to ensure product viability and success
- Collect test data efficiently for pre-launch reports
- Integrate optional chiller for convenient thermal cycling system upgrade
- Fully integrated and enclosed system mounted on ruggedized mobile cart
- Aluminum platen features single-zone uniform conduction heating via resistive heaters located inside platen–upgradeable chiller option available
- Test chamber accommodates configurations up to 6U
- Programmable test recipes and data logging for vacuum, pressure, and temperature
- Cylindrical style stainless steel chamber with 6-inch glass viewport and internal LED lighting
- Chamber Configuration: Cylindrical
- Chamber Dimensions (inside): 17.5″ DIA X 24.0″ D
- Working Dimensions (inside): 16.0″ DIA X 22.0″ D
- Test Capacity: Capacity up to 6U—appropriate for testing nano, CubeSat, FlatSat, and small satellites
- Vacuum Level: Capable of vacuum levels in the 1 X 10-6 Torr range
- Pumping System: Dry scroll pump: 9 CFM; Turbomolecular pump: 1 X 10-6 Torr, 290 l/sec N2
- Spare Ports: CF 2.75 / ISO 100 / NW40 / NW16
- Controller: LACO’s HVC-3500 thermal vacuum controller 7-inch color touchscreen with graphical display of vacuum system, vacuum pressure, and temperature
- Valve Control (pneumatic): Auto and manual control valves–manual mode with turbo pump valve sequencing to protect turbo pump
- Recipes: Vacuum, vent, hold and heat (up to 20 recipe configurations)
- Data Storage: Ethernet, internal microSD card, USB drive
- Temperature Control: Setpoint PID, 1 Zone
- Temperature Measurement: 3 each additional RTD probes
- Temperature Range: Ambient to 150 °C (300 °F)
- Thermal Control: Single-zone conduction electrical heating via platen. (Platen includes internal cooling channels for optional chiller upgrade)
- Wattage: Electric heater: 3000W
- Power: System: 208-240V, 60HZ (single phase), 20 AMPS
- Upgrade options: Chiller, feedthroughs, thermal shrouds, emissivity coating, platen mounting inserts
