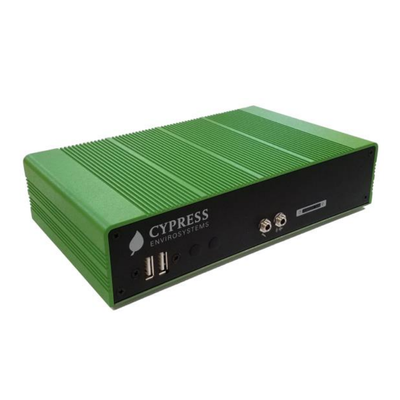

Cypress Envirosystems - Model GBC -Green Box Controller

SHARE

Gathers, stores, distributes, and presents wireless data, plus alarm notifications on excursions.The Cypress Envirosystems Blue Box Server (BBS) is an industrial server that collects data from Cypress Envirosystems field devices and enables access to data from a variety of users and interfaces.

Most popular related searches
remote monitoring
RoHS compliance
SCADA
RoHS
For users with existing plant databases and operator stations, it can forward data seamlessly to integrate with existing plant SCADA or IT infrastructure using a variety of open communications protocols (e.g. OPC, BACnet, ODBC, web services). For users who do not need to connect to an existing infrastructure, the Blue Box Server can also serve as a standalone Web Server and Text Message Server. Standard PC workstations can become operator stations simply by using a web browser. Alarm notifications may be sent to cell phones, PDAs or email.
  • Data collection unit for receiving wireless data from Cypress Envirosystems field devices
  • Each Blue Box Server accommodates up to 255 Cypress Envirosystems field devices (typical)
  • Built in Web Server for easy browser access to data and trending
  • Capability for local storage of data
  • Uses robust and highly optimized industrial DSSS radio and protocol with antenna and frequency diversity
  • OPC and BACnet interfaces for integration with existing automation systems
  • Ruggedized enclosure for industrial environments
  • FCC, RoHS and ETSI compliant

Part numbers and product briefs for submittals:

  • GBC-830-COM: used with the Wireless Pneumatic Thermostat system (each GBC-830-COM requires one USB Hub (WPT-LoRa-Hub)
  • GBC-820-IND: used with the Wireless Steam Trap Monitor, Wireless Gauge Reader, Wireless Transducer Reader, and Wireless Freezer Monitor (each GBC-820-IND requires one Industrial USB Hub (IND-HUB-900))
