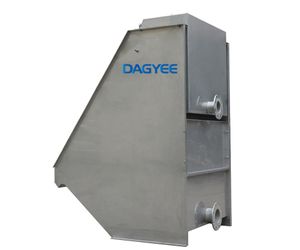

Dajiang - Model HS -V-Slot Wire Sieve Bend Run Down Screen Static Fine Particle Self Cleaning Products
The static screen has a built-in screen. The screen consists of a horizontal bar with a special profile and is made of Aisi 304 or 316 quality stainless steel. The water is distributed in the upper part of the filter screen, and its inclination on the horizontal surface gradually decreases from top to bottom. The effect of solid matter separation and dripping is obtained sequentially.
Static Screen Wastewater Description
The static sieve equipment we produce is manufactured from stainless sieve bars called wedge wire slots. The chassis of the equipment is manufactured from AISI 304 stainless steel or epoxy paint protected carbon steel.
Sieve opening is projected between 500 microns and 2 mm.Inlet and outlet are manufactured with flanges, thus facilitating installation.
Static Screen Wastewater Works
Used for Dissolved air flotation as a core product, static screen as a pretreatment before Dissolved air flotation . These screens facilitate a consistent flow and reduce the amount
of suspended solids going to the DAF unit.
The static sieve equipment we produce is manufactured from stainless sieve bars called wedge wire slots. The chassis of the equipment is manufactured from AISI 304 stainless steel or epoxy paint protected carbon steel.
Sieve opening is projected between 500 microns and 2 mm.Inlet and outlet are manufactured with flanges, thus facilitating installation.
Static Screen Wastewater Feature
No moving parts, no motor
Very low installation cost, no maintenance required
Only need regular cleaning
Quiet operation
V shape of the bar provides a self-cleaning effect on the screen
Static Screen Wastewater Application
Fruit and vegetable canning
Wine producers and distilleries
Meat and processed meals industry
Slaughterhouse
Fish processing
Breweries and dairies
