  5. Gero - Model DL05 - Data Logger

Gero - Model DL05 -Data Logger

SHARE
The DL-05 data logger is a compact device with an extra low power consumption technology. Due to the usage of the newest battery technology, an operational battery life of up to 15 years is possible for the data logger.
Most popular related searches
data logger
pressure monitoring
pressure sensor
integrity monitoring

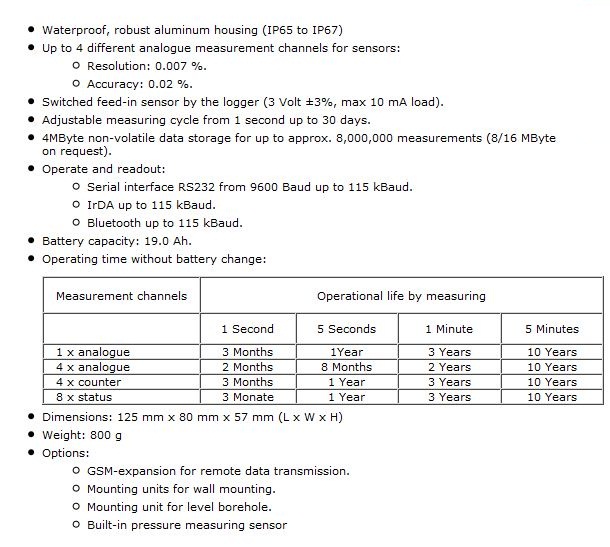

  • Maximum possible input measurement channels
    • 4 analogue measurement channels with 14 bit resolution.
    • 4 high resolution, digital counter inputs.
    • 8 digital alarm and/or status inputs.
    • serial input
  • Sensors (e. g.):
    • Level, pressure, temperature.
    • pH-Value, Conductivity, Chemical parameters.
    • Precipitation, Flow status.
  • Storage capacity up to 8,000,000 measurement values.
  • Serial interface for PC (RS232).
  • Powered by lithium battery.
  • Up to 15 years battery life.
  • Protection class IP65.
  • Protection class up to IP67.
  • Integrated pressure measurement sensor, connection via pressure hose.
  • Extern power supply:
    • 12 VDC.
    • 24 VDC.
    • 100 VAC to 240 VAC.
  • Bluetooth or IrDA-interface for operation with PC, PocketPC or mobile phones.
  • Measurement cable.
  • Assembly and installation material.
