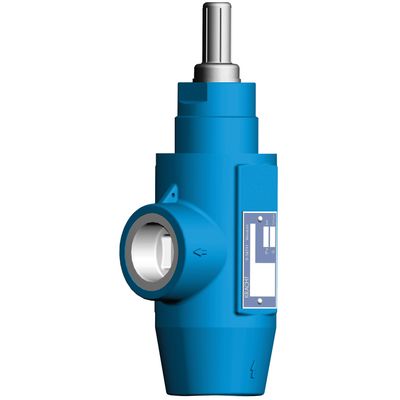

The pressure relief valve DBD is a directly-operated poppet valve for installation in the pipelines or as a clamp-in valve. The valve is used to safeguard the pressure of hydraulic systems up to pmax = 400 bar. For line installation, the housing has two connections with Whitworth pipe threads. Without housing, the valve cartridge can alternatively be screwed into the specified bore contour in any body desired.
Most popular related searches
pressure relief valve
relief valve
poppet check valve
servo-controlled solenoid valve
hydraulic valve
valve operator
- Nominal size: 06 / 08 / 10 / 20
- max. Flow rate: 200 l/min
- Nominal pressure: 400 bar
- Viscosity: 10 ... 600 mm²/s
Nominal size: 06 / 08 / 10 / 20
max. Flow rate: 200 l/min
Nominal pressure: 400 bar
Viscosity: 10 ... 600 mm²/s
