BioKube Jupiter - Model A.G. Series -Decentral Wastewater Treatment Plants
FromBioKube A/S
BioKube’s Jupiter Above Ground (A.G) systems are STP plants commonly used for treating waste water from hotels, resorts & smaller villages with daily inlet values of up to 250 m³. The systems are installed above ground after a septic tank and a buffer tank.
Most popular related searches
decentralized wastewater treatment plant
concrete septic tank
septic tank
decentralized wastewater treatment
wastewater treatment plant
package sewage treatment plant
decentralized wastewater
wastewater treatment
blower unit
blower
- All electrical component in the Jupiter A.G. System Unit; e.g. blowers, pumps, UV-units , are integrated and connected to the BioKube Standard Control Box, from where the power is distributed and controlled.

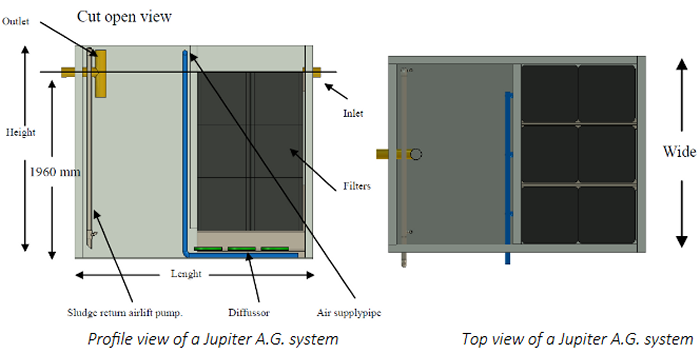

- The Control Box is placed in and external weather protected shed (see drawing).
- The plant is normally powered with 340 Volt, 3 phase power supply.
- Systems for 110V power supply regions can be supplied upon request.

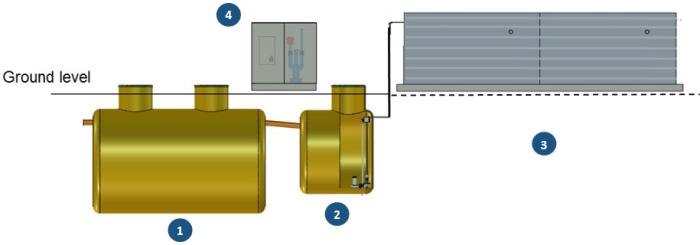

Installation Components
The Jupiter A.G. system is typically installed in ground after a septic tank & buffertank. The septic tank & buffertank of plastic material should be supplied locally from one of many standard suppliers. Alternatively it can be casted on site in concrete.
- Septic Tank
- Buffer Tank
- Jupiter A. G. Treatment Unit
- Shed with Control Box and Blower
- A complete system can consist of multiple Jupiter A. G. Units modular installed in either series or parallel.
