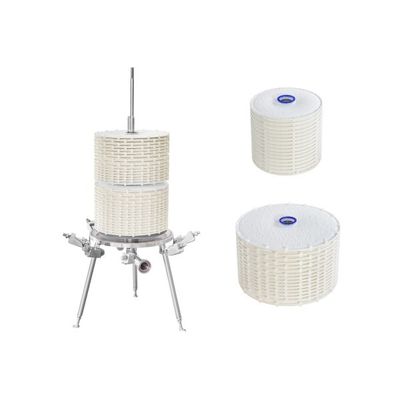

StrassburgerFilter - Model SF-DISC -Deep-Bed Filter Modules

The SF-DISC module for deep-bed filters is made of filter cells, which in turn consist of two filter sheets. Two filter sheet blanks and a plastic drainage disc are joined together to form a filter cell. The edge of the filter cell is sealed by edge molding. Several filter cells are then assembled to form a filter module. The drainage is located on the clear side of the two filter sheets, which means that the direction of flow is from the outside to the inside. The outer edge of the filter is given an injection-molded polypropylene frame, creating a closed filtration system.
