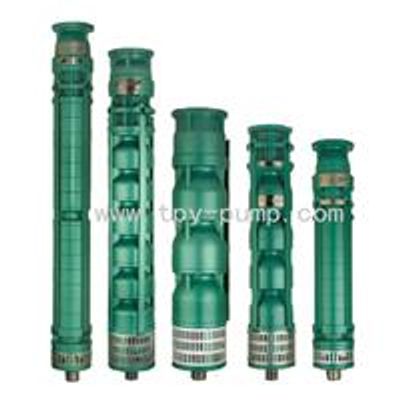

Model QJ -Deep Well Submersible Pump 1
The 100QJ stainless steel deep well pump is made of stainless steel stamping. It is the most widely used submersible pump in small flow and large lift in China. The 100QJ stainless steel deep well pump is a mechatronic product that is suitable for pumping groundwater, reservoirs, canals, rivers, mines, etc. The water lifting project is mainly used for water and farmland irrigation in the plateau mountainous areas, and is also available for water supply and drainage in cities, labor, railways, mines and construction sites.
Second, 100QJ stainless steel deep well pump product application range
Suitable for pumping groundwater, reservoirs, canals, rivers, mines, etc. The water lifting project is mainly used for water and farmland irrigation in the plateau mountainous areas, and is also available for water supply and drainage in cities, labor, railways, mines and construction sites.
Third, 100QJ stainless steel deep well pump product features
- Stainless steel deep well pump motor and water pump integrated, small footprint, submersible operation, stable operation, safe and reliable.
- There are no special requirements for well pipes and water pipes (ie: steel pipe wells, ash pipe wells, wells, etc. can be used; under pressure, steel pipes, hoses, hoses, plastic pipes, etc. can be used as water pipes.
- beautiful shape, light weight, low noise, no pollution, adaptability to the installation environment, greatly save the project cost, does not affect the building, natural landscape.
- The stainless steel deep well pump has a simple structure and saves raw materials. If properly managed, it can greatly extend the service life.
Fourth, 100QJ stainless steel deep well pump use conditions
1. The rated frequency of stainless steel deep well pump is 50HZ, rated voltage is 380V, 220V, which is AC. If you need, you can customize the solar deep well pump, which is DC.
2. The inlet of stainless steel deep well pump must be below 1 m of moving water level, but the depth of diving should not exceed 70 m below the static water level, and the lower end of the motor should be at least 1 m away from the bottom of the well.
3. Water quality requirements:
(1) The amount of sand in the water is not more than 0.01% (weight ratio);
(2) The PH value is in the range of 6.5 to 8.5;
(3) Chloride ion content is not more than 400 mg / liter
4. The well is required to be straight and the wall is smooth.
Five, 100QJ stainless steel deep well pump model meaning
- 100QJ10-130/27
- 100-water pump for minimum caliper
- 10-rated flow rate m3/h
- 130-lift m
- 27- impeller number, ie the number of impellers
Sixth, 100QJ stainless steel deep well pump performance parameters
100QJ stainless steel deep well pump
