Griffin Dewatering Corporation

Deep Well System

From

0

The deep well system is also a versatile predrainage dewatering system which can pump high and low volumes of groundwater. This method is best suited to homogeneous aquifers that extend well below the bottom of the excavation. Deep well systems consist of one or more individual wells, each of which has its own submersible pump at the bottom of the well. Deep well systems are suitable for water-table or confined aquifers and will lower the water table 100 feet or more in a single lift without staging.


Griffin Dewatering offers effective and innovative turn-key solutions to groundwater control problems using Deep Wells. We offer a full professional service from initial design, drilling, supply and installation of pumping equipment together with all associated appurtenances.

Deepwell systems are effective in a wide range of soil conditions from gravel through to silty fine sands. Deep well systems consist of one or more individual wells, each of which has its own electric submersible pump at the bottom of the well..

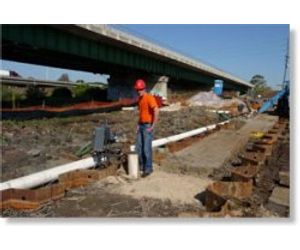

A deep well system installed at an excavation for an Army Corps of Engineers pumping station project under construction in New Madrid, Missouri in close proximity to the Mississippi river.

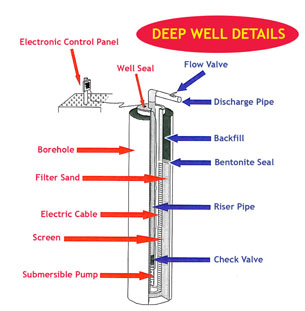

Cutaway illustration of a deepwell dewatering system. The Deepwell sytem is employed to lower groundwater levels to provide stable working conditions in excavations. Deep well dewatering systems are used when large volumes of groundwater must be pumped, highly permeable soils result in rapid recharging of the aquifer, and/or the depth of excavation excludes other dewatering methods. Griffin offers a full turn-key contract service including initial design, drilling, supply and installation of pumping equipment along with site management.

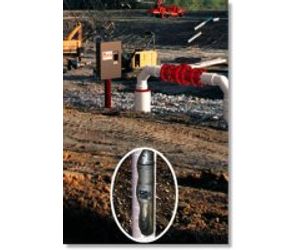

Deep Well dewatering job in San Diego, California by Griffin Dewatering Farwest, for the CMAC Refinery and Pipeline Construction Company. The project was for repairs to a U.S. Navy fuel pipeline and consisted of deep wells placed inside of interlocking shoring.

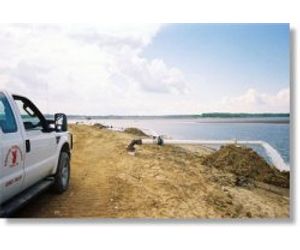

Deep well dewatering system for the Batchtown Wildlife Refuge Rehabilitation project near St. Louis, Missouri. The wells were installed on a oval earthen berm directly in the Mississippi River. Individual wells were pumping roughly 1750 gpm each.

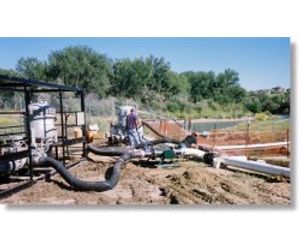

Series of deep wells used for installation of a new River Intake Pump Station for Excel Energy situated less than 100’ from the Arkansas River in Pueblo, Colorado.
