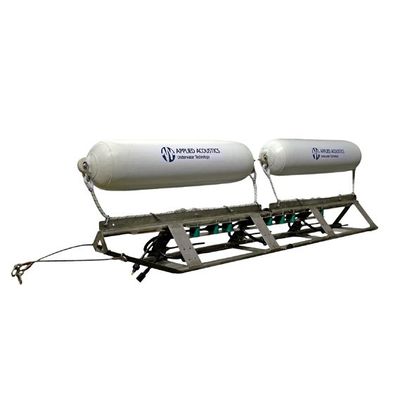

Applied Acoustics - Delta Sparker

SHARE

The Delta Sparker is the most powerful sparker available in the applied acoustics range and is intended for deeper penetration sub-bottom profiling. As a multi-tip sparker array, the Delta can be used in UHR multi-channel seismic surveys, utilising 24 or 48 channel streamers during geohazard assessment, construction projects or shallow target 2D exploration.

Most popular related searches
sub-bottom profiler
bottom profiler
seismic monitoring
acoustic ranging
geohazard
acoustic profiler
sound profiler
seismic
  • Powerful sparker for deep penetration surveys
  • Compatible with CSP-S12000
  • 2.5m triangular tow frame, supplied with buoys
  • Tow depth can be adjusted
  • Replaceable electrodes for easy field maintenance
  • Deepwater geohazard survey

PHYSICAL

Dimensions: 2550mm (L) x 350mm (W) x 250mm (H) (can be split in two for ease of shipping)
Weight: 50kg approx
Frame material: Stainless steel
Buoyancy: FA6 floats x 2
Depth of tow: Adjustable
Connector: RMK 1/0 complete with locking collar

ELECTRICAL INPUT
Recommended energy: 1500 – 12,000J/shot
Maximum energy: 12,000J/shot

Delta Sparker Technical Specification
Operating voltage: 3000-4000V
Number of tip locations: 3 (yellow, blue, red) Operator selectable
Maximum number of tips: 9 single: 3(3 x 1); 135 multi-tip: 3(3 x 15)

SOUND OUTPUT
Source level: Typically 226dB re 1μPa at 1 metre with 6000J
Frequency range: 300Hz – 5kHz
Pulse length: 0.3 – 5.0ms; Dependent on tips and power applied
Penetration: 800ms achieved

COMPATIBLE ENERGY SOURCES
Delta Sparker: CSP-S12000

COMPATIBLE HV CABLE
Delta Sparker: HVC 3500
Standard length 75m: RMK 1/0 connectors complete with locking collars
