DeTech - Line Shaft Turbine Pump
These pump with high eff hydraulic design, and different material available for different application. Main application is water supply, irrigation, fire fighting etc.
Most popular related searches
precision balance
fire fighting
water supply
fire fighting system
turbine pump
strainer
strainer filter
impeller pump
waterway
discharge regulations

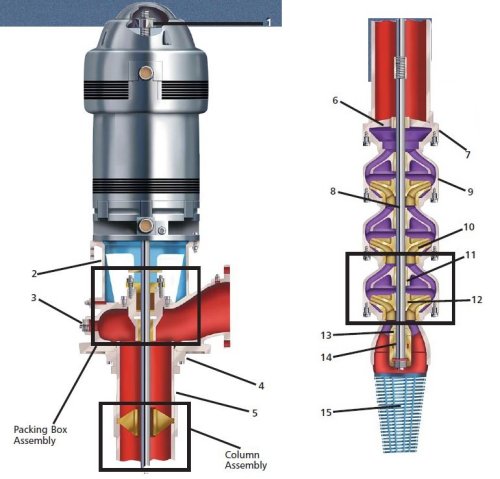

- Adjusting Nut : Permits exact impeller adjustment for maximum performance.
- Discharge Head : Heavy-duty head provides maximum accessibility to service packing box assembly. Two piece head shaft is standard.
- Prelube Connection
- Column Adapter : Accepts threaded or flanged column.
- Adjusting Nipple : Threads directly into column adapter. Headshaft stickup set exactly by threading head on column as required.
- Discharge Bowl Bearing : Bronze.
- Discharge Bowl : Close grained cast iron.
- Pump Shaft : Oversized high strength polished stainless steel.
- Intermediate Bowls : Close grained cast iron. Waterways glass lined for maximum efficiency.
- Impellers : Silicon bronze, designed for maximum efficiency. Precision balanced for smooth operation.
- Intermediate Bowl Bearings : Bronze or rubber for long pump life under any well conditions.
- Lock Collets : Steel construction secures impeller to pump shaft.
- Sand Collar : Accurately located at suction bowl bearing to eliminate possible sand buildup.
- Suction Bowl Bearing : Bronze. Grease packed for long trouble-free life.
- Tail Pipe or Strainer — Optional : Optional tail pipe cut to desired length for best suction conditions. Strainer provides protection from large solids.
