Cosmo Instruments Co., Ltd.

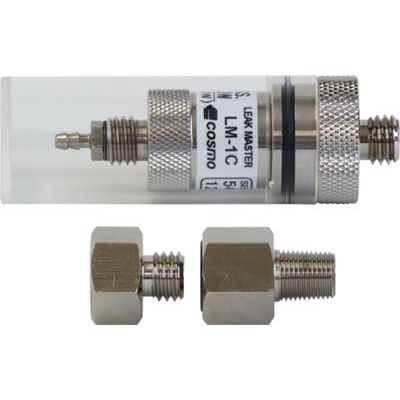

Cosmo - Model LM-1C Series -Determination Device
The leak master LM-1C is ideal for everyday inspections of air leak testers. The LM-1C Series is used as an ideal determination device, so it can be manufactured with your desired leak volume. Please specify test pressure and leak volume in the range below when ordering. Leak rate is indicated both by the "equivalent flow rate" and the "conversion flow rate" in Cosmo. When calibrated with the equivalent flow, leak flows not affected by the temperature and atmospheric pressure are displayed.
Most popular related searches
- There is a LM-1C manufactured to the specified test pressure and leak volume, and a LM-1C-J1 Series with specified leak volume.
- Create the specified leak amount at the specified test pressure
- Manufacturing precision within 5% of the requested leak volume.
- However, for less than 2mL/min, manufacturing precision should be ±10～20%.
- Easily and reliably run a sensitivity check of air leak tester.
- The change in leak volume is small, so it can be used stably over the long term
- Can also be used for external pressure detection (secondary side measurement) method
- Can be directly connected to our air leak tester calibration port
- By using dedicated adapter, connection is possible when doing piping from workpiece to tester
- By changing the leak master to a dedicated seal plug, it is possible to easily return to normal inspection status (no leak status)
- Traceability certificate is available upon a request
