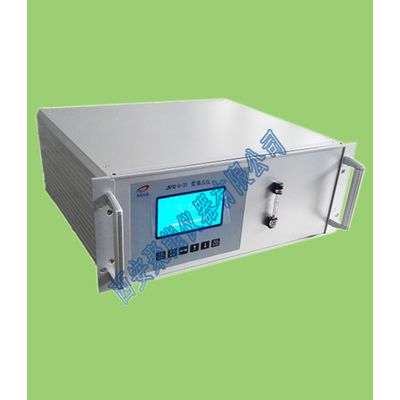

Juneng - Model JNYQ-D-21 -Dew Point Meter
Standard 483mm width 4U height 19 inch cabinet standard chassis, suitable for complete sets of equipment, can also be used in the laboratory. Anti-acid, anti-corrosion sensor, anti-cross interference, advanced digital processing technology. Service life: more than 5 years. Linear expression of measurement signal output. Output of multiple state signals: sound, light, picture, relay, communication information. Digital temperature compensation. Full Chinese menu operation (English version of order instructions).
Most popular related searches
dew point sensor
dew point monitoring
analytical instrument
water content monitoring
scientific research
air separator
air separation
sound level limiter
trace monitoring
water control
Second, the field of application:
- JNYQ-D- 21 analytical instrument can be used in the fields of air separation, chemical fertilizer, chemical industry, medical treatment, scientific research and so on.
Third, the principle of detection:
- JNYQ-D- 21 analytical instrument adopts dew point sensor and crystal oscillator sensor imported from Visala company, which has fast response speed and high sensitivity.
- The utility model is easy to use and operate.
- It can measure the trace water content in all kinds of gases and realize all kinds of automatic and rapid on-line detection with strict control of water content.
- Measurement range: + 20mm / m / m 80 ℃ + 20m / m / m / 100 ℃.
- Precision: less than ±2%F.S.
- Main outcome measures: zero drift: ±2%FS/7d.
- Range drift: ±2%FS/7d.
- Linearity error: ±2%FS.
- Signal output: (1) Measurement output.
- Large screen blue LCD, data direct reading, rich information.
- Both Chinese and English versions (English version order instructions).
- Humanized menu operation, concise and lively.
- Isolated current: (0pm 4x20) mA (500Ω).
- Isolated communication: RS232, RS485 (optional).
- (2) State control output (isolation).
- Upper and lower limit passive electric shock (adjustable).
- Communication interface: RS232, RS485 (optional).
- Working environment: power supply voltage: 220VAC ±10%, 50Hz ±5%.
- Ambient temperature: (5-45) ℃.
- Allowable humidity: (0,85)% RH.
- Power: 30W.
- Weight: about 5.0kg
