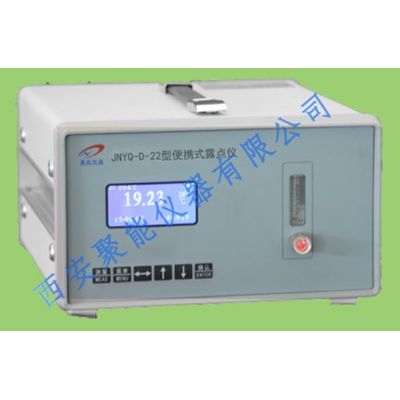

Juneng - Model JNYQ-D-22 -Dew Point Meter
Characteristics: Portable chassis, lightweight and convenient. Anti-corrosion sensor, anti-cross interference, advanced digital processing technology. Service life: more than 5 years. Linear expression of measurement signal output. DC power supply, no other power supply.
Digital temperature compensation. Full Chinese menu operation (English version of order instructions).
Second, the field of application:
JNYQ-D- 22 analytical instrument can be used in the fields of thermoelectricity, air separation, metallurgy, chemical fertilizer, chemical industry, medical treatment, fresh-keeping, environmental protection, scientific research and so on.
.
Third, the principle of detection:
JNYQ-D- 22 is a portable analytical instrument, which adopts the new dew point sensor of imported Visala company and advanced digital processing technology, which has the advantages of fast response and high sensitivity, and realizes the automatic and rapid detection of moisture content in all kinds of gases.
- Measurement range: + 20mm / m / m 80 ℃ + 20m / m / m / 100 ℃.
- Accuracy: less than ±2 ℃ (higher than-60 ℃), less than ±3 ℃ (lower than-60 ℃).
- Repeatability: less than ±1 ℃.
- Resolution: 0.1 ℃.
- Response time: T90 ≤ 3 minutes.
- Operating voltage: 24V DC.
- Charging voltage: 220VAC ±10%, 50Hz ±5%.
- Working environment: temperature:-5 ℃ ~ + 45 ℃; humidity: ≤ 90%RH.
- External dimension: 260 (wide) × 140 × (high) 300 (deep).
- Weight: about 3.5kg
