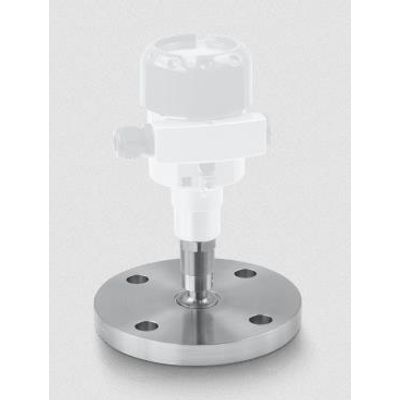

OPTIBAR - Model DSP 3000 -Diaphragm Seal with Flange Design and Optional Extension
The OPTIBAR DSP 3000 is a membrane diaphragam seal for mounting to the OPTIBAR PM 5060 and OPTIBAR PM 3050 pressure transmitters. It features a flange design for direct or capillary tube attachment. The diaphragm seal comes with a wide selection of wetted materials from stainless steel to chemically resistant PTFE or PFA coatings, Hastelloy®, Duplex, titanium, tantalum and gold. This makes it ideal for absolute or gauge pressure measurement and hydrostatic level applications where it is required to avoid direct contact between the measuring cell of the transmitter and the medium.
Diaphragm seal with flange design and optional extension
- For direct or capillary tube attachment to OPTIBAR PM pressure transmitters
- Flange: DN50…100 / 2…4"; max. PN63 / ASME Cl 300
- Up to +400°C / +752°F (with capillary tube)
- Wetted materials for aggressive, corrosive, viscous, solidifying or abrasive media
Absolute and gauge pressure measurement or hydrostatic level applications involving:
- Very aggressive acids
- Corrosive and reducing atmospheres
- Viscous and clogging media
- Abrasive fluids
- High temperature processes up to +400°C /+752°F
Depending on selected device configuration
General information
- Product type Diaphragm seal
- Product family name OPTIBAR
- Product positioning With flange design and optional extension
