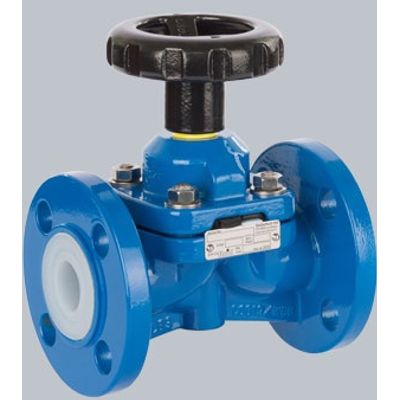

Swissfluid - Model SDV -Diaphragm Valves
FromSwissfluid AG
Fully lined weir type Diaphragm Valves for shut-off or throttling of corrosive liquids or gaseous media. Due to its cavity free design it is also well suited for high-purity applications.
Most popular related searches
- Proven weir type valve body made of cast steel
- Cavity-free design
- Installation in any attitude (self-draining)
- Force limiting device protecting diaphragm
- Yellow sight indicator showing actual position of diaphragm
- Easy replacement of components on site
- Body Stainless steel casting 1.4408 AISI 316 CF-8M
- Lining PVDF, ETFE, PP
- Diaphragm EPDM/FPM
- Special Mounting of position indicator, lockable
