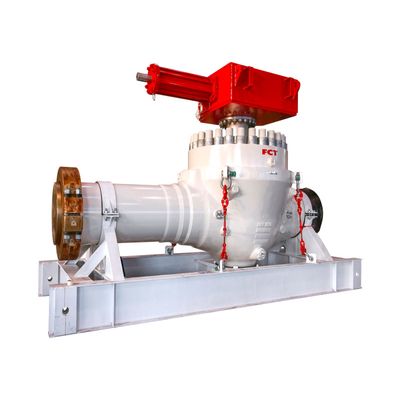

FCT - DIB Valve
The DIB Valve produced by FCT is engineered for trunnion-mounted applications, featuring a split body that supports either side or top entry installation. This valve accommodates a range of flange types including RF, RTJ, WE, Hub (clamp), and compact flanges. Designed in accordance with the latest API 6D (type B) H12 specifications for Double Isolation and Bleed, it ensures comprehensive isolation capabilities. Furthermore, it meets SIL 3 compliance standards, underscoring its reliability in critical operations. The valve body and trim materials are crafted to meet rigorous operational requirements, providing high durability and performance under various pressure and temperature conditions. Its seating design further enhances operational integrity, making it a versatile and robust solution for specialized industrial use.Most popular related searches
Size / Pressure range / Temperature
- DN 50 – DN1500
- ASME Class 150 – 2500
- -46°C / +200°C
Main Characteristics
-
Trunnion Mounted
-
Split Body/Side Entry or Top Entry
-
Flanges RF, RTJ, WE, Hub (clamp), Compact flanges
-
Double Isolation & Bleed as per API 6D (type B) new requirement H12.
-
SIL 3 Compliant
Body / Trim Material
- Forged or Cast
- From carbon steel up to most exotic material such as SS, DX, SDX 6MO, Alloy 625, Monel, Titanium, …
Seats
- Soft seated & Metal seated (Tungsten Carbide from 150µm to 400µm)
- SPE (Self relieving) & DPEE
Additional data
- Fully customized single valve for perfect isolation against a single pressure source (Double Isolation and Bleed) allowing 100% safe line opening. Typically used for pig launcher/receiver isolation. Range qualified by Equinor up to 38″ 1500#.
