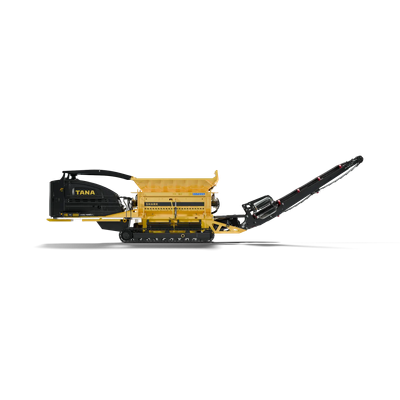

Tana Hammerhead - Model DT -Diesel Mobile Waste Heavy-Duty Shredder

Unique versatility

• Ability to produce homogenous particle size
• Takes care of the whole shredding process
• Capability to process widest range of materials - even the toughest ones
• Easy access to service points makes the daily routines more efficient

Designed for shredding the widest range of materials. TANA Hammerhead DT industrial waste shredder enables full control over the particle size from 50 to 500 mm (2” to 20”) with lowest operation costs. This enables time and cost savings as it is possible to perform shredding in just one pass.

TanaConnect® collects, analyses and presents the data that is produced by TANA machines, so you can enhance your own business. The information management system enables you to calculate production efficiency, including costs and profits per ton, as well as to evaluate different operators by comparing the quantities they have shredded during a certain time period, such as a single work shift.

Large variety of customisation options – make it your own

• Robust construction – gets the job done in toughest operating conditions and with toughest materials
• Screens available – many sizes, desired particle size with one pass
• Selection of rotors available – durability, performance, ease of maintenance
• Easy access for maintenance – safe and quicker maintenance
• TCS material programs – preset, available for adjustment
• Reduced operating costs – service interval 500 h
• Adjustable conveyor angle – 30° ± 10°
• Touch screen display – user friendly interface for the operator

• Rated power (SAE J1995): 399 kW (535 bhp) @2100rpm
• Nominal torque: 440 kNm
• Rotor length: 3000 mm
• Rotor max. speed: 28 rpm
• Rotor diameter: 920 mm
• Rotor knives, pcs: 33 knives or 44 knives
• Screen options: 50mm, 76mm, 3D 76mm, 90mm, 100mm, 109mm, 3D 109mm, 120mm, 130mm, 167mm, 220mm, 275mm, special tyre shredding screen
• Emissions (diesel): Available in EU Stage IIIA/U.S. EPA Tier 3 or Tier 4 final, EU Stage V
