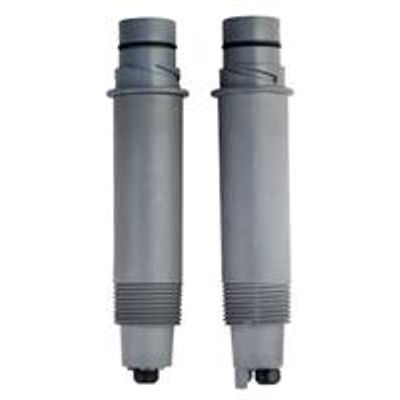

+GF+ Signet DryLoc - Model Type 2765/2767 -Differential pH Electrodes

These differential electrodes use field-proven 3-electrode differential technique: the pH and reference electrodes are measured against a ground electrode, ensuring a steady and stable signal. A key feature is the reference electrode which is protected in a glass half-cell embedded in the reference chamber and is protected from compounds that may contain sulfides (S2-) and metals. To ensure long service life, the reference features a refillable electrolyte chamber and a replaceable equitransferant salt bridge. The patented porous PTFE reference junction resists fouling, clogging and chemical attack.

Other elements of the design are the solution ground, the pH/ORP electrodes, and the temperature element. The solution ground eliminates noisy measurements by draining electrical current away from the reference electrode. The pH/ORP electrodes are designed with a flat or bulb measurement surface, and a temperature device that is positioned at the tip of the measurement surface, making the temperature response of T95% less than 1 minute. Various temperature devices offered include 3 KΩ, 300Ω, or PT1000 RTD. The electrodes are used with the Signet 2750 Sensor Electronics, which provide a blind 4 to 20 mA output or use the digital (S3L) output to connect to Signet`s 8900 Multi-Parameter Controller. The electrodes can also be used with the Model 2760 preamplifier to connect to the Signet`s 8750 instruments.

pH/ORP:

• Wetted Materials: Ryton, PTFE, FKM, carbon graphite, glass
• Connection: Durable DryLoc® with gold plated connections
• Compatible Preamp/Sensor Electronics: 2750 and 2760
• Compatible Instruments: Use the 2760 preamplifier with the Signet 8750; Use the 2750 sensor electronics with the Signet 8900, 9900 or 9950 instruments
• Additional Features: Differential reference for additional protection in harsh chemicals; also quick temperature response
• In-line Mounting styles: Use the sensors 1 inch thread to mount to any in-line tee
• Submersible mounting: Available using the back of the preamplifier or sensor electronics
• Applications: Water treatment, water quality monitoring, scrubbers, heavy metal removal, harsh chemicals, etc.

• PTFE reference junction
• Field-proven differential design for stable measurements in the most aggressive applications
• Integral temperature sensor. Quick temperature response
• Water-tight DryLoc connector with foulproof gold contacts
• Compatible with other suppliers` instruments
• Easy sensor replacement using DryLoc electrode connector
• Solution ground
• Rebuildable reference electrode

• Toxics Destruction
• Water and Waste Water Treatment
• Heavy Metal Removal and Recovery
• Scrubbers
• Plant Effluent
• Plating Baths
• Coagulation and Flocculation
• Harsh Chemical Applications
• Textile Dye Process
• Surface Finishing
