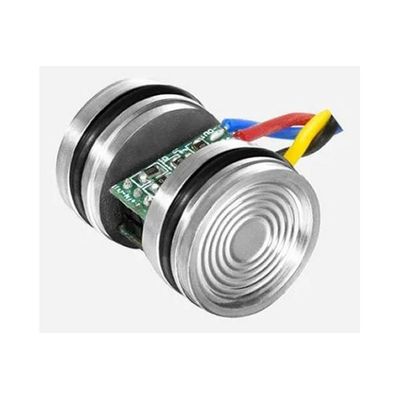

MicroSensor - Model MDM290 -Differential Pressure Sensor
The MDM290 differential pressure sensor is piezoresistive and oil-filled type, isolated by a stainless steel corrugated diaphragm. As differential pressure sensor suppliers, Micro Sensor`s pressure-sensitive components are assembled on advanced production lines, automatically tested and compensated by computer. The high and low-voltage ends are protected by isolation diaphragms. Both pressure chambers can be in contact with certain corrosive fluid media. The installation dimensions align with typical products, ensuring that the MDM290 sensor offers excellent interchangeability. MDM290 can be as an air differential pressure sensor for different gases. It is widely used in industrial process control and other fields to measure differential pressure.
- Φ19x26mm
- Outer Resistors Temperature Compensated
- Laser Trimmed Thick-film Circuit Board
- Differential pressure sensor MDM290 is temperature compensated with Outer Resistors and has a laser-trimmed thick-film circuit board.
Used For
Differential pressure sensor MDM290 is temperature compensated with Outer Resistors and has a laser-trimmed thick-film circuit board. The differential pressure sensor is in 19 mm diaphragm and 26 mm height.
- Measuring range: 0.35Bar~35Bar
- Suitable for a variety of fluid media
- All 316L stainless steel material
- Diaphragm: Stainless steel 316L
- Housing: Stainless steel 316L
- Pin: Silicon rubber flexible wire
- O-ring: FKM
- Shock: No change at 10gRMS,(20 ~ 2000)Hz
- Impact: 100g, 11ms
- Media compatibility: The gas or liquid which is compatible with stainless steel and FKM
