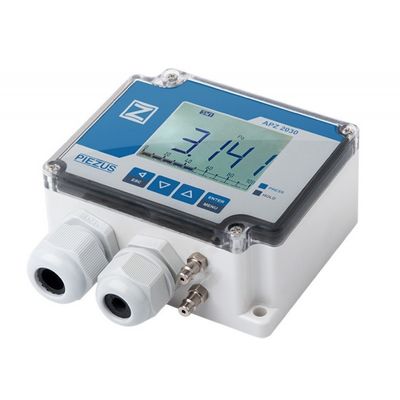

PIEZUS - Model APZ 2030 -Differential pressure transmitter for ventilation and air conditioning
FromPIEZUS LLC
APZ 2030 is a HVAC/R pressure transmitter and switch. Large informative display provides measured pressure info in digital and bargraph form as well as units selected, and switch outputs status. With highly configurable independent two single pole double throw relay switch outputs, this small and cost efficient device is capable of local fans and filters monitoring as well as remote signal transmission via 4...20 mA or 0...10V analog outputs.Most popular related searches
pressure transmitter
pressure transmitter and switch
differential pressure transmitter
filter monitoring
air conditioning
pressure transmitter switch
fan filter
monitoring well
silicon sensor
HVAC
Differential pressure ranges: 100 Pa up to 7 kPa
Accuracy: ±1.5%
Relay outputs: SPDT, 2 pcs
Output: 0...10 V; 4...20 mA;
Sensor: silicon piezoresistive
Pressure port: barbed, for 4 mm ID tube
Operating temperatures: -10...+50 °C
Delivered with 2 meters of tube and 2 duct connectors
For non-flamable and non-agressive gases
Heating and ventilation
Air conditioning
Filters, fans, valves and air shutters monitoring
Clean rooms
