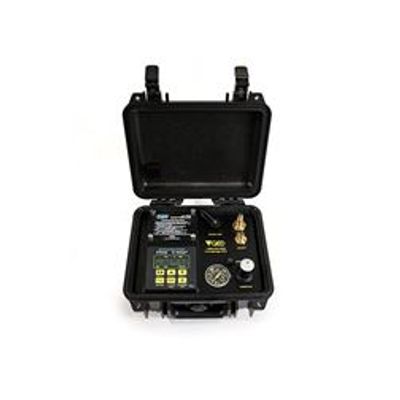

MicroPurge - Model MP10 -Digital Controller
The MicroPurge basicsTM MP10 Controller revolutionizes low-flow sampling with advanced logic control of purge flow and well drawdown. Simple up-down arrow keys increase and decrease purge flow, driving a microprocessor to re-create expert techniques for low-flow adjustment. Then, optimized settings are identified for recall in the next round of sampling. The MP10 also offers an easy way to prevent excessive monitoring well drawdown during purging, by linking to the optional MP30 Draw down/Water Level Meter.
Most popular related searches
low flow sampling
water level meter
water metering
monitoring well
water meter
groundwater sampling
water level drawdown meter
well monitoring
well purging
flow control
Expert flow and drawdown control for low-volume purging. The lightweight, compact MP10 sets the pace for a new generation of genuine MicroPurge basics equipment, first in control and power for low-flow sampling.
- Exclusive MicroPurge control mode
- Multi-mode digital control
- Full digital display
- Connection port for optional MP30 Drawdown/Water Level Meter
- Rugged, weatherproof compact case
- Digitally recreates expert sampling strategies
- All parameters are easily visible in low- or full light conditions
- Control modes automatically selected when MP30 detects drawdown limits
- MP10 is fully portable and protected for use in any weather conditions
- Self contained in weatherproof, structural resin case
- 2-line, 16 character LCD display
- Six input keys
- Three AA batteries, 50,000 cycle life
- Max Pressure: Standard 120 PSIG (8.3 barg) / High Pressure 300 PSIG (20 barg) / UltraHigh Pressure 500 PSIG (35 barg)
- Max Pumping Depth: Standard 250 ft (75 m) / High Pressure 600 ft (180 m) / UltraHigh Pressure 1,000 ft (300 m)
