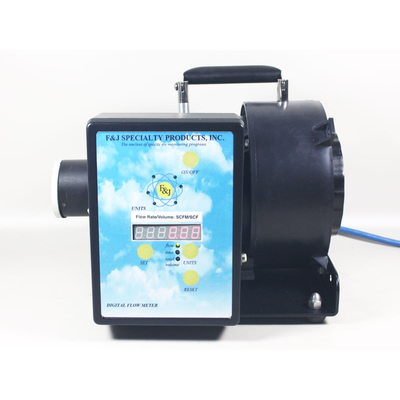

F&J - Model DF8400 -Digital Flow Meter High Volume Air Sampler (100 – 120 VAC)
The DF8400 Digital Flowmeter Series air samplers are high volume air samplers with a two stage, thermally protected electric motor driven vacuum blower and a 7-foot long electrical cord. The motor driven blower is mounted in a very durable lightweight plastic polypropylene housing, mounted to a sturdy base plate, having non-skid rubber feet. The flow rate is adjustable by use of a motor speed controller. The DF8400 has a bright LED display for flowrate, elapsed time and accumulated volume and a four button keypad. Various flow and volume engineering units are available for selection.
Most popular related searches
high volume air sampling
digital flow meter
air sampling
high volume sampling
flow meter
filter holder
combination filter holder
vacuum blower
digital high volume air sampling
digital air sampling
- State-of-the-art Microprocessor Controlled Electronics
- Accurate flow sensor
- Flowrate and Volume totalizations displayed are corrected to a factory settable Reference Temperature and Pressure (4 options available)
- Very accurate elapsed time meter
- Very durable polypropylene plastic housing
- Lightweight <9 lbs. (4.1 kg)
- Variable speed control up to full flow
- Thermally Protected Motor
- Powerful 1.4 H.P. dual ball bearing motor
- Bright LED display
- Standard 4-inch (102 mm) diameter filter holder; also accommodates optional 8”×10” (20.3 × 25.4 cm) filter holder w/adapter
- 120Volt or 230Volt models available
- Pump Type: Two stage, through flow, thermally protected 1.4 H.P., dual ball bearing vacuum blower motor.
- Maximum Motor Capacity: 90 CFM at 29.92” HG at 68ºF (Free Air Flow); Flow rate achievable will depend on the filter media utilized
- Power Requirements:
- DF8400 – 110-120VAC; 50/60Hz; single phase
- DF8400E – 220-240VAC; 50/60Hz; single phase
- Power Cord: 7’; 18 gauge, 3 conductor
- Circuit Breaker: 10 amp (able to reset)
- Flow Control
- Variable Speed up to full flow
- Dimensions: 15 ¾”L × 9”W × 11”H (40L × 22.9W × 27.9 cm H)
- Weight: 11 lbs. (5 kg)
- Handle: Durable plastic/metal
- Particulate Holder: A durable plastic 4-inch (102 mm) diameter holder is standard
- Digital Flowmeter Displays:
- Flowrate: Corrected to STP
- Elapsed Time: hhh;mm
- Volume: Corrected to STP
- Model HV-1SA or HV1SAP Adapter
- An adapter to reduce from 4” (102 mm) diameter to 1.83” FPT
- Model FJ304 Combination Filter Holder
- Holds 3.4”D × 1.2”H charcoal filter and 4” (102 mm) diameter filter paper
- Model FJ2100 Filter Holder
- 8”×10” (20,3 cm × 25,4 cm) particulate filter holder may be utilized directly on the unit
