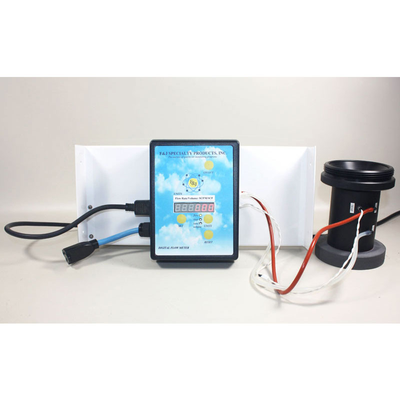

F&J - Model DF-HKUPG-BL -Digital Flow Meter Kit for Brushless Analog High Volume TSP Air Samplers

The Installation of the DF-HKUPG-BL upgrade kit will provide the following benefits:

• Automatic Normalization of flow rates and air sample volumes to an internationally recognized Reference Temperature and Pressure Standard
• Automatic electronic flow control
• Accurate elapsed time measurement
• RS232 communications port for integration with the F&J Data Storage Device, or F&J ruggedized cellular phone system for remote and unattended air samplers.

The typical operating flow rates can vary from the standard 20 to 120 m3/hr, or another more appropriate flow range to conform to the customer requirements.

Operator Selectable Options

• Shut off Type
• On Time 1 min to 168 hours
• On Volume .01 to 9.99×1099 Sm3/hr
• (minimum volumen varies depending on flow range and flow units)
• RS232 Output Frequency 1/sec, 1/min,1/6min,1/hr
• Automatic Flow Control: Operator selectable within the instrument’s operating flow range
• Selection of Reference T and P or Ambient flow reporting conditions

Factory Settable Options

• Flow/Volume units Sccm/scc, SLPM/SL, SCFM/SCF, Sm3/hr, Sm3/min
• Temperature units ºC, ºF
• Pressure units inHg, mmHg, kPa
• Reference Temperature 0ºC, 20ºC, 70ºF, 25ºC
• Reference Pressure 29.92 inHg (760 mmHg)
• Display Dimming Function On or Off
• Auto Shut-off Function On or Off
• Flow Control On or Off
• Sampling Mode Volumetric
• Gas Type Air
• Language Options for Label English, French

• Data Logger System
• Data Storage Device (P/N: 232FCDSD)
• Secure Digital Card (P/N: 372239)
• Flash Card Reader (P/N: SDDR-199-A20
• Ruggedized Cellular Phone System (P/N: CASRPS-DFM)
