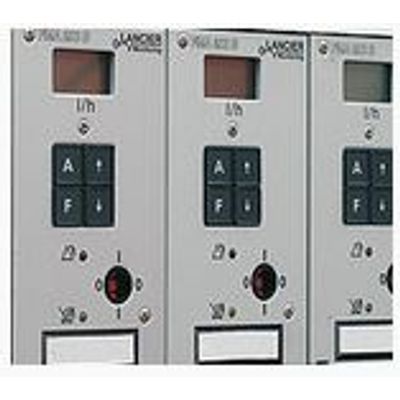

Lancier - Model FMA 200C -Digital Flowmeter
The FMA 200C is a highly accurate and reliable instrument to monitor pressurized cables. It may be used as a local measuring device or as an adressable sensor within the LANCIER monitoring system. The airflow measurement ispressure-independent at a range of 0 - 200 l/h. Actual values are shown at the 3 digit LC-display with a resolution of 1 l/h. The FMA 200C signalises the exceeding of programmed thresholds by means of a signal LED and the closing of an alarm relay contact. A built-in key is used to acknowledge the local signal.
The distribution block with integrated electrical and pneumatical bus system can house up to five FMA 200C without the need of costly connectors. Old LANCIER distribution blocks with mechanical flow meters can be conveniently replaced one-to-one.
The distribution block can also be installed into swivelling frames and frontdoors of pressurization equipment as well as into 19"- wall-mountcabinets and into the RTS 2802.
- Measuring range 0 ... 200 l/h
- Display resolution 1 I/h
- Max. measuring error ±3 % FS, ±1 Digit at +20 °C
- Max. temperature drift ±0,15 % FS/°C
- Operating pressure 0 ... 1 bar
- Operating voltage 36 ... 72 V= / 2,5 VA
- Operating temperature 0 ... +50 °C
- Storage temperature -30 ... +80 °C
- Admissible humidity 0 .. 95 % rel. humidity, non-condensing
- Signal output dry contact, max. 100 V= / 0.1 A=
- Remote reading Tx-bus
- Frequency range 1000 Hz ... 2000 Hz
- Resolution 1 Hz 0,2 l/h
- Dimensions
- Flowmeter (WxDxH) 64,2 x 106,2 x 110,2 mm
- Manifold block (WxDxH) 322 x 150 x 110,2 mm
- Weight
- Flowmeter approx. 0.18 kg
- Manifold block equipped with 5 flowmeters approx. 1.80 kg
