F&J - Model DF-60810DTE -Digital High Volume Air Monitoring System (220 - 240 VAC)

The basic components of the system are assembled in a modular fashion so that each component can be readily and independently removed for service.

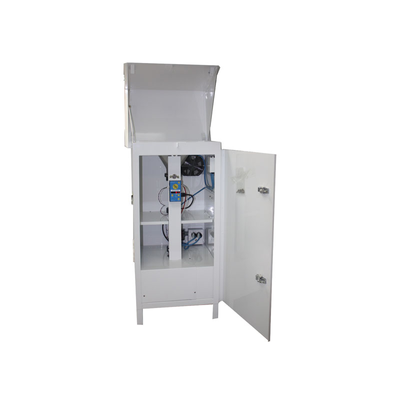

For durability and weather resistance, the system is housed in a freestanding powder coat painted aluminum enclosure. The sample air is drawn in under the eaves of the hinged lid from all four sides and is exhausted near the bottom of the enclosure. The locking swing door on the enclosure provides convenient access for servicing the equipment inside. A lockable latch on the top cover restricts unauthorized tampering with the filter holder.

The electronic flow control measurement sub-system of the DF-60810DTE Series provides a standard flow measurement and a constant flow of air through the filter medium. The air flow is measured by a precision-machined differential pressure sensor. The controller can be readily set to any sampling flow rate within the calibrated flow range depending on the filter paper air resistance and dimensions. The bright LED readout displays multiple air sampling information including current flow rate, current elapsed sample time and totalized volume. The filter holder can be custom designed to accommodate any filter size and type. The DF-60810DTE model utilizes an 8”×10” (20,3×25,4 cm) filter.

• Display in English or metric units set at factory
• Choices of flow/volume units: SLPM SL SCMH SCM SCFM SCF
• State of the Art microprocessor electronics
• Automatic Flow Control
• Auto Shut-off on time or volume
• Flowrate and volume totalizations displayed are corrected to a factory settable Reference Temperature and Pressure (4 options available)
• Elapsed time meter
• Auto zero calibration feature of flow sensor
• Bright LED display
• Flow rate accuracy within ± 4.0% F.S.
• RS-232 Communication Port w/Operator selectable download frequency for real-time data
• 220 – 240 VAC, 50/60Hz; single phase

• Performance: Basic components of the system are modular and independently serviceable. Sample flow rate can be set be-tween 20 and 70 CFM (560 and 1980 LPM). Filter holder is a 20,3×25,4 cm (8”×10 ) diameter standard.
• Technology: Microprocessor controlled state of the art electronics
• Operating Temperature Range: 0ºF* to 122ºF (-18ºC* to 50ºC)
• *warm start/continuous operation
• Operating Relative Humidity: 0 – 95% RH
• Typical Flow Rate Range: 20 – 70 CFM (560 to 1980 LPM)
• (Depending on filter paper dimensions and air resistance).
• Motor: Brushless: 1.5 H.P. (1000 Watt) motor with electronic motor speed control
• Power: 220-240VAC; 50/60Hz; 5 amperes; single phase.
• Housing: Powder coat painted aluminum Locking hinged cover
• Removable hinged cover Locking swing door with key
• Dimensions: 57.5”H × 21.5”W × 21.5”D (146 H × 54,6 W × 54,6 cm D)
• Weight: Approximately 98 lbs. (44,5 kg)
• Shipping Weight: Approximately 150 lbs. (68,2 kg)
• Installation Category: Pollution Degree 3
• Enclosure Rating: IPX3
• Noise Level: ~81 dB average @ 1 meter
• Automatic Flow Control: The system microprocessor monitors flow rate relative to the preset Reference T and P flow rate established during the setup procedure and electronically adjusts the electronic motor speed adjustment, if necessary, to maintain the flow within ± 4% of setting. The microprocessor computes the STP flow rate by correcting for temperature and pressure.

Measurements:

• Temperature of air flow through system
• Inlet pressure to the flow sensor
• Differential Pressure of the flow sensor

Calculations/Determinations:

• Totalized volume, STP
• Current flow rate, STP
• Elapsed time

Factory Settable Reference T and P

• Classical STP 0ºC, 1 ATM
• Normal T and P 20ºC, 1 ATM
• Modified Normal T and P 70ºF, 1 ATM
• Standard Ambient T and P 25ºC, 1 ATM

Other System Features:

• Automatic shut off of system on totalized volume or elapsed time
• RS-232 port for real-time data download
• Utilization of 8”×10” (20,3×25,4 cm) filters
• Bright LED display
• Automatic flow control

OPTIONS:

• Data Storage Device (P/N: 232FCDSD)
• 2 GB Secure Digital Card (P/N: 372239)
• Flash card Reader (P/N:SDDR-199-A20)
