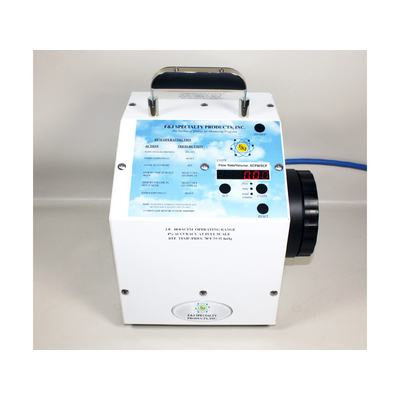

Model DFHV-1S-BL-TE digital high volume air samplers provide simplicity of operation and improved accuracy. This model features a 450 watt brushless vacuum blower, digital flow measurement, elapsed time and accumulated volume measurement capability. It has a bright LED display and a four button keypad. Various flow and volume engineering units are available for selection at the time of order placement. The pump is mounted on a rigid base with non-skid rubber feet. The air sampler is supplied with a 102 mm (4”) diameter filter holder.
- Home
- Companies
- F&J Specialty Products, Inc
- Products
- F&J - Model DFHV-1S-BL-TE - Digital ...
F&J - Model DFHV-1S-BL-TE -Digital High Volume Air Sampler (220 - 240 VAC)
Most popular related searches
digital high volume air sampling
high volume air sampling
air sampling
high volume sampling
digital air sampling
filter holder
digital flow meter
flow control
air sampling flow
flow meter displays
- Display in English or metric units set at factory
- Choices of flow/volume units:
- SLPM: SL
- SCMH: SCM
- SCFM: SCF
- State of the Art microprocessor electronics
- Automatic Flow Control
- Auto Shut-off on time or volume
- Flowrate and volume totalizations displayed are corrected to a factory settable Reference Temperature and Pressure (4 options available)
- Elapsed time meter
- Auto zero calibration feature of flow sensor
- Bright LED display
- Flow rate accuracy within ± 4.0% F.S.
- RS-232 Communication Port w/Operator selectable download frequency for real-time data
- 220 – 240 VAC, 50/60Hz; single phase
- Brushless Motor (450 watts)
- PUMP TYPE: The pump is a 450W brushless blower with 3 phase commutation for more precise speed control
- MAXIMUM MOTOR CAPACITY: 36 CFM at 29.92” Hg and 70ºF (Free Air Flow)
- HUMIDITY OPERATING RANGE: 0-95% RH (non-condensing)
- TEMPERATURE OPERATING RANGE: 18 to 122ºF (-8 to 50ºC)
- ULTIMATE VACUUM: 58.9” H2O (4.34 Hg) at standard temperature, pressure and zero flow restriction
- POWER REQUIREMENTS: 220 – 240VAC; 50/60Hz at 3 amperes; single phase
- CIRCUIT BREAKER PROTECTION: 10 amperes
- ELECTRICAL CORD: All temp, 3 wire 16 gauge
- FLOW CONTROL: Electronic motor speed control
- HANDLE: Durable metal/plastic
- DIMENSIONS: (10”L × 8 ¼”W × 9¾ ”H) (25.4cm L x 21.0cm W x 24.8cm H)
- AVERAGE dB: 78.6 at 31.4 CFM
- WEIGHT: Approx 5,43 kg (12 lbs.)
- INSTALLATION CATEGORY: Pollution Degree 2
- DIGITAL FLOWMETER DISPLAYS:
- Flowrate: Corrected to Ref. T and P
- Elapsed Time: hhh:mm
- Volume: Corrected to Ref. T and P
- FLOW CALIBRATION: Factory calibration or calibration check recommended once per year.
- FILTER HOLDER OPTIONS: The standard 102 mm filter holder design can be custom modified to provide 110 mm, 120 mm, 130 mm and 150 mm filter media.
