Model DFHV-1E digital high volume air samplers provide simplicity of operation and improved accuracy. This model features a motor cooling fan within the motor housing, digital flow measurement, elapsed time and accumulated volume measurement capability. It has a bright LED display and a four button keypad. Various flow and volume engineering units are available for selection. The pump is mounted on a rigid base with non-skid rubber feet.

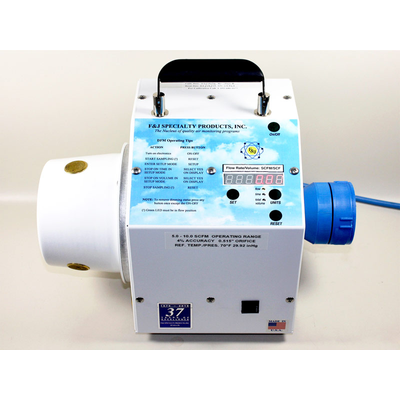

F&J - Model DFHV-1E -Digital High Volume Air Sampler (220 - 240 VAC)
Most popular related searches
digital high volume air sampling
high volume air sampling
high volume sampling
air sampling
digital air sampling
digital flow meter
flow control
flow meter displays
flow meter
cooling system
- Display in English or metric units set at factory
- Choices of flow/volume units:
- SLPM - SL
- SCMH - SCM
- SCFM - SCF
- State of the Art microprocessor electronics
- Automatic Flow Control
- Auto Shut-off on time or volume
- Flowrate and volume totalizations displayed at actual conditions or corrected to STP is operator selectable
- Elapsed time meter
- Auto zero calibration feature of flow sensor
- Bright LED display
- Flow rate accuracy within ± 4% F.S.
- RS-232 Communication Port w/Operator selectable download frequency for real-time data
- 220 - 240VAC, 50/60Hz; single phase
- PUMP TYPE: Two-stage, dual ball-bearing,
- bypass type with an independent cooling system for the motor that provides thermal overload protection.
- MAXIMUM MOTOR CAPACITY:
- 94 CFM at 29.92” Hg and 68ºF (Free Air Flow); Flow rate achievable will depend on the filter media utilized
- HUMIDITY OPERATNG RANGE:
- 0-95% RH (non-condensing)
- TEMPERATURE OPERATING RANGE:
- -8º to 50º C (18 to 122ºF)
- ULTIMATE VACUUM: 80” H2O at standard
- temperature, pressure and zero flow restriction
- POWER REQUIREMENTS: 220 – 240VAC;
- 50/60Hz at 4.1 amperes; single phase
- CIRCUIT BREAKER PROTECTION:
- 10 amperes, slow blow fuse
- ELECTRICAL CORD: All temp, 3-wire, 16 gauge
- FLOW CONTROL: Electronic motor speed control
- HANDLE: Durable plastic
- DIMENSIONS: 11 1/16”L × 9 3/8”W × 10 ¾”H (28,1 × 23,8 × 25,4 cm)
- NOISE LEVEL: Average dB 83.8 @ 1 meter
- WEIGHT: Approx 13.4 lbs. (6,1 kg)
- INSTALLATION CATEGORY: Pollution Degree 2
- DIGITAL FLOWMETER DISPLAYS:
- Flowrate: Corrected to Ref. T and P
- Elapsed Time: hhh:mm
- Volume: Corrected to Ref. T and P
