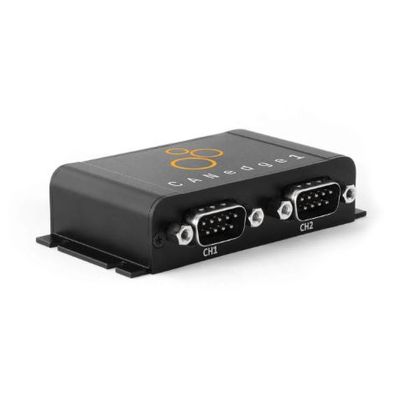

CSS Electronics - Model CANedge1 -Digital Multimeter for Long-term Data Logging

GENERAL :

• Functionality : Standalone CAN bus data logger with SD card and 2xCAN/LIN channels (incl. CAN FD)
• Firmware : Supports free firmware updates for adding features
• Configuration : Configuration files based on the popular open source JSON schema concept
• Software
  • Free open source editor tool for easy device configuration (offline/online version available)
  • Free open source asammdf software & API for editing, DBC converting & plotting MDF4 data
  • Free open source MF4 converters - drag & drop log files to convert into e.g. CSV, ASC, TRC
  • Free open source Python API - e.g. for automated data processing, reporting or integrations
  • Free open source telematics dashboards for visualizing your DBC decoded data in your browser
• Safety : CE, FCC, IC, KC and RoHS certified (see the Docs)
  • Tested for voltage transients (emissions/immunity), ISO 7637-2:2011, by TUV SUD (see the Docs)
• Warranty : 1-year warranty
• Support : Free, fast & high quality support
• Origin : Denmark

CAN BUS :

• Channels : 2 x CAN channels (incl. CAN FD support)
• Standard : ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 5 Mbit/s payload rate)
• Protocols : Log raw data from CAN based protocols (J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS, ...)
• Identifiers : Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
• Bit-Rate Auto-Detect : Bit rate can be auto-detected or set manually
• Retransmission : Configurable retransmission of frames that have lost arbitration or been disturbed by errors
• Transceiver Protection :
  • ±16 kV HBM ESD, ±15 kV IEC ESD, ±70 V bus fault, short circuit
  • Common mode input voltage: ±30 V
  • TXD dominant timeout (prevents network blocking in the event of a failure)

LIN BUS :

• Channels : 2 x LIN channels
• Publisher/Subscriber : Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission
• Custom length : Support for custom frame lengths
• Standard : Compliant with LIN 2.0 up to 20 Kbit/s (support for Classic & Enhanced checksum format)
• Transceiver Protection : ±8 kV HBM ESD, ±1.5 kV CDM, ±58 V bus fault
•   : TXD dominant timeout (prevents network blocking in the event of a failure)

DATA LOGGING :

• SD Card : 8 GB extractable Class 10 industrial micro SD (SDHC) included (optional 32GB) - read at 80 MB/s   i
• Parallel CAN/LIN : Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously
• Real-Time Clock : Yes - CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
•   : The RTC can be configured to match local time zones (default: UTC)
•   : The RTC can be auto-synced via a CAN message (e.g. from a precise GNSS timestamp)
• Log File Format : Log data in industry standard binary MF4 (easily convert to e.g. CSV, ASC, pandas, MATLAB, ...)
• Data Compression : Configurable embedded log file zipping (~50-80% size reduction)
• Silent Mode : Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission)
• Filters : 128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection, prescaling)
• Prescaling : Prescale CAN frames to record e.g. by time (per X ms) or by data (e.g. if byte X or Y changes)
• Transmit : Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2 requests
• CAN Error Frames : Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement)
• LIN Error Frames : Support for logging LIN error frames (checksum, receive, synchronization, transmission)
• Remote Frames (RTR) : Support for logging/transmission of remote CAN frames (RTR)
• Cyclic Logging : Optional cyclic logging mode (oldest log file is deleted when SD card is full)
• Advanced Triggers : Control signal lets you start/stop logging based on custom CAN IDs & data thresholds
• CAN Heartbeat : Optionally transmit heartbeat CAN frame with device status, storage used & RTC time
• File Split : Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s)
• Power Safe : 100% power safe data logging - no file corruption when disconnected
• Unique Device ID : Each device has a globally unique ID ensuring unique log file naming
• Data Encryption : Log files can be encrypted at rest on the SD card for security/GDPR/CCPA purposes

ELECTRICAL :

• Input Supply : +7V to +32V DC via the Channel 1 DB9 (e.g. via CAN connector power pin)
• Power Consumption : Extremely low (~1 W) - no risk of battery drainage
• Protection : Reverse voltage protection on CAN-bus supply
•   : Transient voltage event protection on supply lines

MECHANICAL :

• Enclosure & Weight : Compact aluminium enclosure: 75 x 47 x 20 mm (W x L x H excl. flanges). 100 grams
• Flanges : Flanges with 4 x M3 screw holes (head diameter < 6 mm) - see also the CANedge 'mounting kit'
• Connector : 2 x Standard D-sub 9 (DB9) connectors (optional OBD2/J1939/... adapters)
• Pin-Out : See the product manual for the DB9 connector pin-outs
• Configurable Power Out : Channel 2 can be configured to supply 5V to external modules (e.g. the CANmod sensor-to-CAN modules)
• LEDs : Logger status via 4 external LEDs: Power, CH1, CH2, Memory
• Temperature : Operating temperature (parts): -25degC to +70degC
• IP Rating : IP Rating 40
