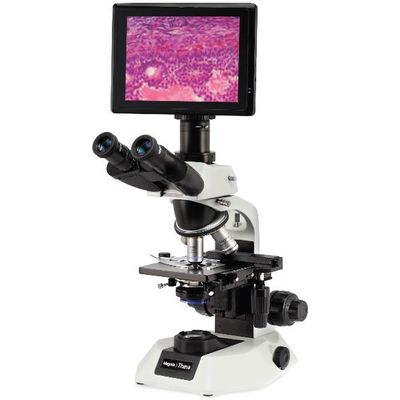

Magnus - Digital Pad for Teaching Microscopes

The multifunctional HD camera displayer produces is an HDMI monitor with 9 inches of the active area which produces high-resolution images with smooth frame rate making it a great choice for Education, Industrial & Research applications.

Most popular related searches

microscopy

SENSOR & SIZE (MM)

1080P/Sony IMX290, 1/2.8" ( 5.57 X 4.13)

PIXEL (UM)

2.9 X2.9

IMAGE CAPTURE

2M (1920X1080) with JPEG Format un SD Card

VIDEO RECORD

1080P 26 fps with AVI Format in SD Card

CAMERA CONTROL PANEL

Including Exposure Gain, White Balance, Color Adjustment , Sharpness Control

CAMERA LENS MOUNT

C/CS-Mount

FPS/RESOLUTION

60@1920/1080P (HDMI) , 26 @1920 X 1080(USB)

WHITE BALANCE

Auto White Balance, Manual White Balance, ROI White Balance

COLOR TECHNIQUE

Ultra-Fine TM Color Engine ( USB2.0)

CAPTURE / CONTROL API

Standard UVC for Windows/Linux/Mac (USB2.0)

RECORDING SYSTEM

Still Picture or Video (HDMI or USB)

OPERATING SYSTEM

Microsoft Window XP/Vista/7/8/8.1/10 (32 & 64 bit), OSx ( Mac OS X), Linux

PC REQUIRMENT

CPU: Equal to intel Core2 2.8 GHz or Higher, Memory: 4GB or More, USB Port: USB2.0 High Speed Port, CD-ROM

POWER SUPPLY

DC 12V/1A Adapter

LCD PANEL

IPS LCD Screen ( Super TFT)

DIMENSION

281(L)*179(H)*15.6(W) mm

ACTIVE DISPLAY AREA

258mm(W) x 145mm(H)

PIXEL PITCH

0.134 (W) x 0.134(H) mm

INPUT VIDEO FORMAT

HDMI

SCREEN BACKLIGHT

LED Backlight, 50000 hours

COLORS

16.7 Millions

DISPLAY TYPE

16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD

TYPICAL CONTRAST RATIO

1000:1

VIDEO FORMAT

HDMI

VIEW ANGLE

IPS Full View

SCREEN BRIGHTNESS

350 cd/sq.m ; 400 cdsq.m/optional

POWER CONSUMPTION

Max 12W
