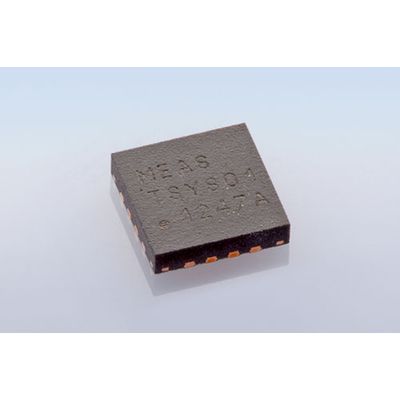

Amsys - Model TSYS01 -Digital Temperature Sensor

The TSYS01 is a digital temperature sensor distinguished by its high accuracy which is suitable for use in battery-operated devices. The digital single-chip temperature sensor enables the measured digital 24-bit temperature to be calibrated with internally stored calibration coefficients to produce a digital value with a high resolution. The TSYS01 can be connected to any microcontroller through the I2C/SPI. Using a simple algorithm this calculates the measured, calibrated temperature from the corrected ADC output values. The TSYS01 is convincing with its above-average accuracy, extremely low current consumption and low level of self-heating. Its small size and supply voltage make the temperature sensor particularly suitable for use in mobile, battery-operated applications.
