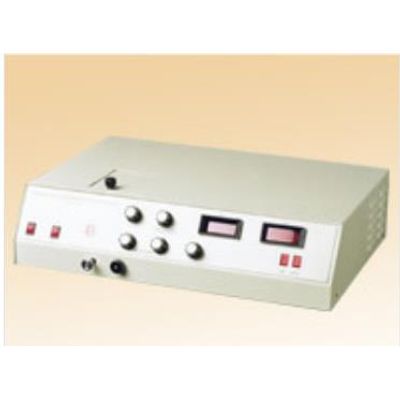

Sunshine - Digital UV Vis Single Beam Spectrophotometer
Range 190 to 1000nm with facility for automatic Concentration, % Transmission & absorbance measurements,. Motorized Microcontroller based wave length selection, 4 digit LED display for wavelength, 3 ½ digit LED data display. It has 4 position sample holder with position selector control for 10mm path length cuvetts.
Most popular related searches
single beam UV-VIS spectrophotometer
single beam UV-VIS
sample holder
single beam spectrophotometer
quartz cuvette
dust cover
tungsten halogen lamp
spectrophotometer
UV-VIS
cuvette
Spectral
- Range: 190 to 1000 nm
- Spectral Bandwidth: 2nm
- Accuracy: ±0.5 nm
- Repeatability: ±0.3 nm
- Read –Out: 4 digit 7 segment red LED display of wavelength
Photometric
- Photometric Range % T:: 0 to 100% Abs. :0 to 1.999
- conc.: 0 to 1999
- Accuracy: ± 0.005 Abs at 1.0 Abs ± 0.010 Abs at 1.5 Abs
- Repeatability: ± 0.002 Abs at 1.0 Abs
- Stray Light: Less than 0.1% at 320 nm
- Readability: ± 1 count
- Data Readout: 3 ½ digit 7 segment red LED display of results
- Light Sources: (a) Tungsten –Halogen Lamp (b) deuterium Lamp
- Detector: Wide range silicon photo diode
- Optics: Complete mirror optics with high resolution 1200 grooves/mm grating, Czerny –turner mount
- Sample Holder: 4 position sample holder
- Power: 230V±10% 50Hz, AC
- Dimensions: 550X405X130mm (LXBXH) (APPROX.)
- Weight: 25 Kg (Approx.)
- Accessories: *Quartz cuvettes of 10mm path length (Set of 2) * operation Mnaual * Dust Cover. (Quartz cuvettes Size: 45 x 10mm)
