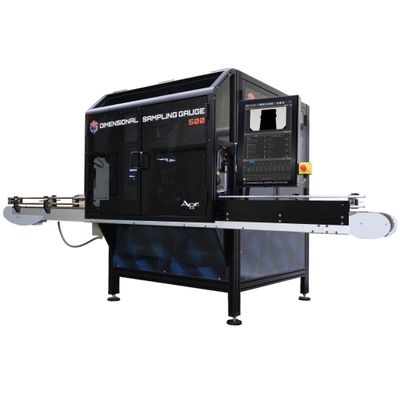

Agr - Model DSG500 -Dimensional Sampling Gauge for Glass Containers
The Dimensional Sampling Gauge 500 (DSG500) is a sophisticated measurement system designed for the precise evaluation of glass containers such as bottles and jars. It offers a comprehensive range of capabilities, including integrated thickness measurement and advanced optics. The device ensures high accuracy and reproducibility in measuring dimensional attributes, meeting stringent industry standards by achieving precision levels ten times greater than typical container design specifications. This system streamlines the measurement process by integrating over 30 different types of measurements into a single automated operation. Moreover, it is compatible with multiple line configurations and integrates seamlessly with Agr’s OmniLab® system, providing a holistic solution for dimensional, thickness, volume, and pressure assessments within the glass container manufacturing industry.The Dimensional Sampling Gauge 500 (DSG500) is the latest version of the high-precision automated measurement station for the glass container industry . The DSG500 offers a multiplicity of new hardware, features and capabilities that further expand the handling, throughput, precision, communication and measurement functions of the DSG product line.
The DSG500 features integrated thickness measurement, state-of-the art optics, positive handling, simple job creation and advanced measurement algorithms that makes it possible to perform even the most challenging measurements with high accuracy and repeatability.
The DSG500 meets or exceeds the most stringent dimensional measurement requirements of bottle and container glass container manufacturing industry with a precision that is 10x greater than typical container design specifications. The DSG500 consolidates a number of critical measurements into one automated operation to facilitate maximum testing and measurement efficiency.
- New, large touch panel interface for all measurement operations
- Multiple measurement stations that operate simultaneously to maximize throughput
- Three-axis, pick and place robot to select containers and precisely place them in each station
- Thickness measurement on every unit with Thickness 360™
- Throughput of 100+ bottles per hour
- Advanced optical design with 360º imaging
- High image capture rate to define the smallest features with high repeatability
- Automated and user-defined job creation
- Telecentric optics to ensure accurate measurements regardless of position
- Industry 4.0 standard communication
- Dimensional
- Bore
- Pushup
- Weight
- Sidewall thickness
