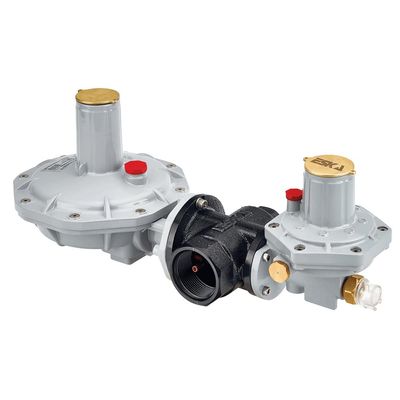

Eska - Model ERG-H5 -Direct Acting Gas Pressure Regulator
ESKA ERG-H5 direct acting gas pressure regulator is used on gas line to reduce inlet pressure to desired outlet pressure. H5 series is suitable for commercial usage like Gas Skids where max inlet pressure up to 20bar and outlet pressure up to 2,5 bar. The regulators are manufactured according to Ped Directive 2014/68/EU. The functional tests are performed according to EN334.
Most popular related searches
- Direct Acting Regulator
- Commercial Natural Gas Regulator
- Medium: Natural Gas, LPG and Non-Corrosive Gases
- Pressure Class: PN20
- Maximum inlet pressure: 6 bar (optional 10 bar -20 bar)
- Outlet pressure range: 15 mbar to 2,5 bar
- Flow range/capacity up to500m3/h
- Operating temperature: -20... + 60°C (optional: -40... +60°C)
- Assembly: Vertical and Horizontal Position
- Filter: as a standard 100 micron pore diameter
ERG-H5 is available with options such as without connections(DN25-DN40), with loose connections and flanged versions.
ERG-H5 Series gas pressure regulator body consists of:
- Valve housing Internal thread
- Set up tool
- Filter
- breather console
- Integrated security valves (OPSO / UPSO / Relief)
- Integrated bypass
