Waircom MBS - Model DM Series -Direct Acting Solenoid Valves

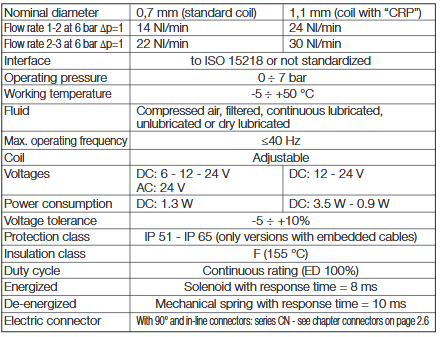

The direct acting solenoid valves series "DM" are produced in the 3/2 N.C. pneumatic function with the interface to ISO 1 521 8 and in the 3/2 N.O. - 3/2 N.C. pneumatic functions with not standardized interface. These valves can be used with all the fluids that can match the constructive materials. The versions with nominal diameter of 1 .1 mm are equipped with "CRP" (Power Reduction Circuit, see documentation below).
