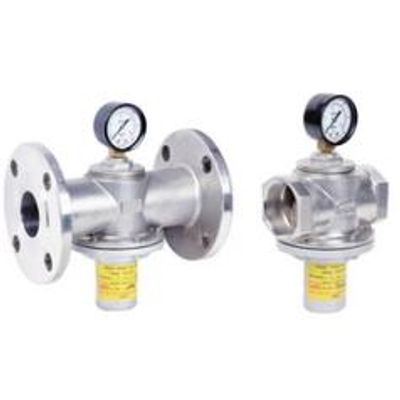

4Matic - Model SD Series- Water PRV -Direct Activated Pressure Reducing Valve
Size Range : 1/2″ to 3″ Screwed / Flanged.
Most popular related searches
- The gate is designed for opening status, which will not fluence the water supply function under unstable inlet pressure condition.
- When the outlet pressure responds directly to the pressure control chamber and the setting pressure, it responds quickly and adjusts the pressure accurately.
- Pressure Adjusting Range : 1 ~ 5 kgf/cm2, 4 ~ 9 kgf/cm2, (special order is needed for other range)
- Valve Body Testing Pressure : 24 kgf/cm2
- Maximum Applied Pressure : 16 kgf/cm2
- Pressure needed form fully-closed gate to fully-opened
- gate 1 kgf/cm2 (1 kgf/cm2 = 14.2 psi)
- Applied Temperature : -15 ~ 80 °C
- Applied Condition : Fluid & Air
