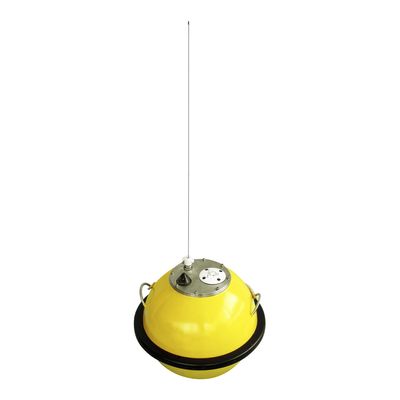

DatawellModel DWR-G4 -Wave Monitoring Buoys

SHARE

Datawell’s smallest directional wave measuring buoy. With a 0.4 m diameter mini-buoy version Datawell completes its range of GPS buoys: DWR-G9, DWR-G7 and DWR-G4, with 0.9 m, 0.7 m and 0.4 m diameters, respectively. Just like its larger equivalents the DWR-G4 relies on the Datawell principle of measuring waves with a single Global Positioning System receiver (GPS). By now this technique is well-established in oceanography as evidenced by several publications and well-pleased users in the field.

Most popular related searches

Sensor

  • wave motion sensor based on GPS

Measures

  • wave height for wave periods of 1.6 to 100 seconds
  • 1 cm precision in all directions (free floating)
  • wave direction
  • water temperature

Additional features

  • GPS for buoy monitoring and tracking through HF link
  • internal data logger
  • LED flasher
  • 0.4 m diameter spherical hull of AISI 316
  • 30 days battery life
