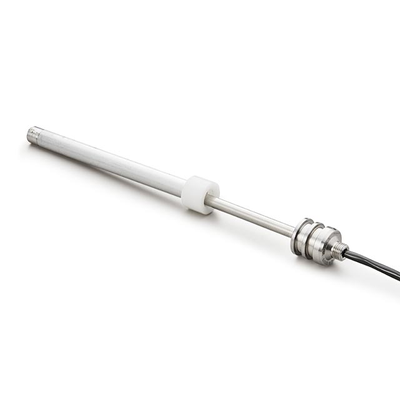

HF Jensen - Model XEHS 6 -Displacement Transducer

The XEHS 6 inductive displacement transducer is based on a concept where the sensing element consists of only one coil, still retaining good linearity. It is designed for installation in hydraulic or pneumatic cylinders. A guiding bushing centers the position sensing aluminium tube. The basic principle makes the measurement contactless both mechanically and electronically. The XEHS 6 is available in a type submersible to 100 mH2O, please see ORDERING INFORMATION on next page. The XEHS 6 operates with the signal conditioner type TCA.
