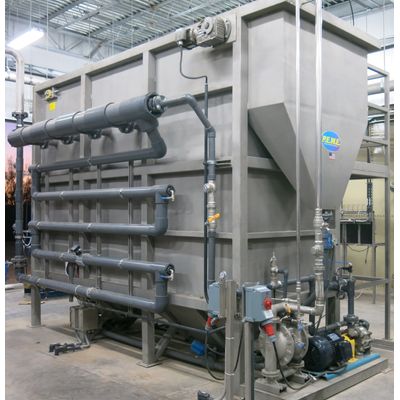

PEWE - Model HD2XLRator - LS Series -Dissolved Air Flotation (DAF) System 25 to 2000 GPM
The unique technology built into each PEWE HD²XLRator DAF system maximizes TSS removal while minimizing chemistry usage and sludge production. The chassis and vessel are constructed of AISI 304SS. With the Tru Counter-Cross Flo plate pack, ParaLam Weir system, integrated pipe flocculator and Rogue MAX RGT aeration, the HD²XLRator DAF operates by precise control of the PEWE Command Control automated panel. PEWE products and systems are designed in-house and produced under tight quality control. PEWE offers products worldwide to the food, petrochemical, pharma, metal, electronic, and other industries along with the municipal market.
The heart of the aeration technology behind the PEWE DAF is the ROGUE MAX RGT® pump. The regenerative turbine design creates the specific conditions for dissolving air efficiently. Coupled with the PEWE DAF, this super air saturated water releases uniform 20-30 micron bubbles into the flotation system and effectively floats fine suspended solids.
The PEWE HD²XLRator® design encompasses the full array of newly advanced technological innovations.
- Dynamic Hydraulic Flow
- Tru Counter-Cross Flo® Plate Pack
- ParaLam Weir® Water Extraction
- Rogue MAX RGT® Turbine Aeration
- Command Control® Panel
